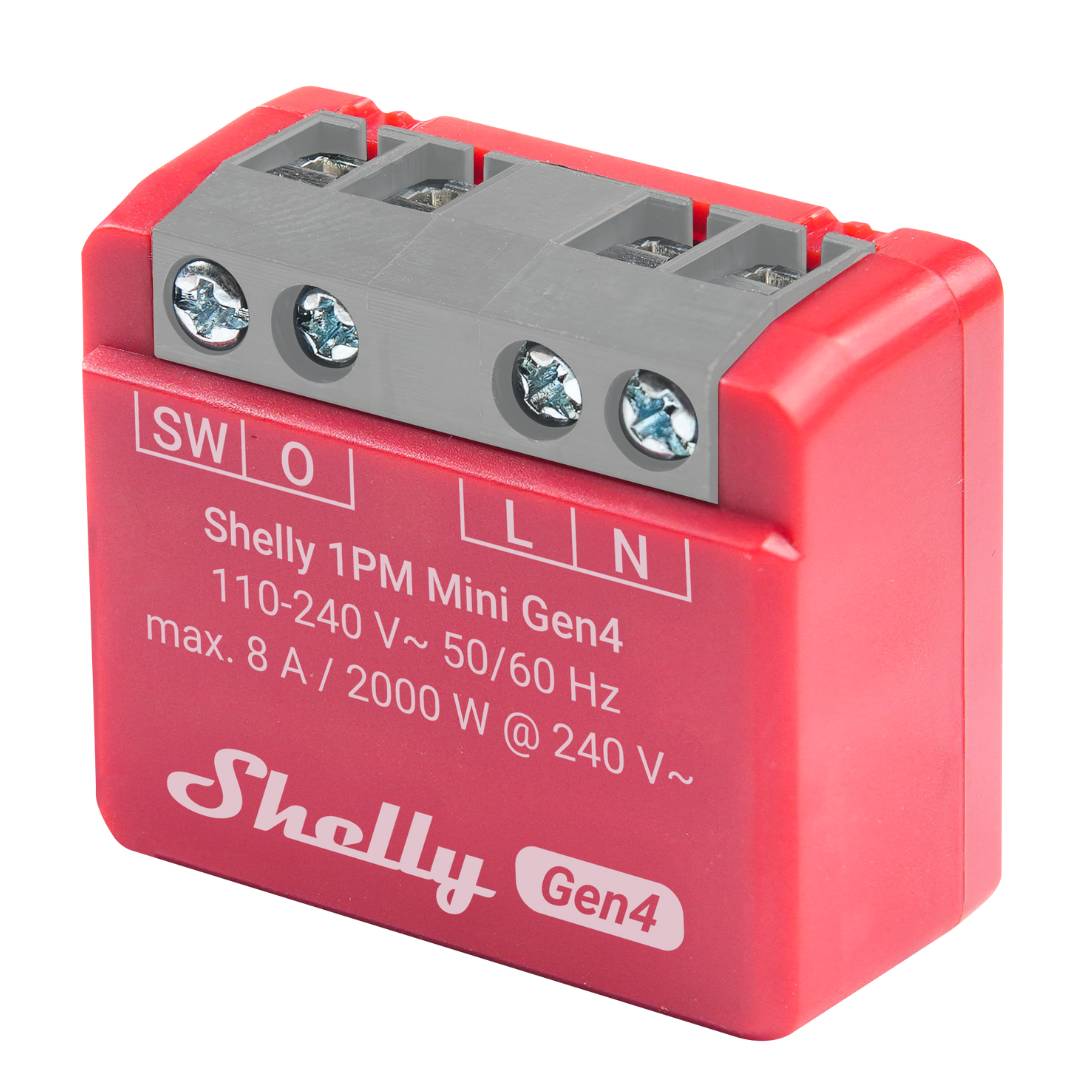

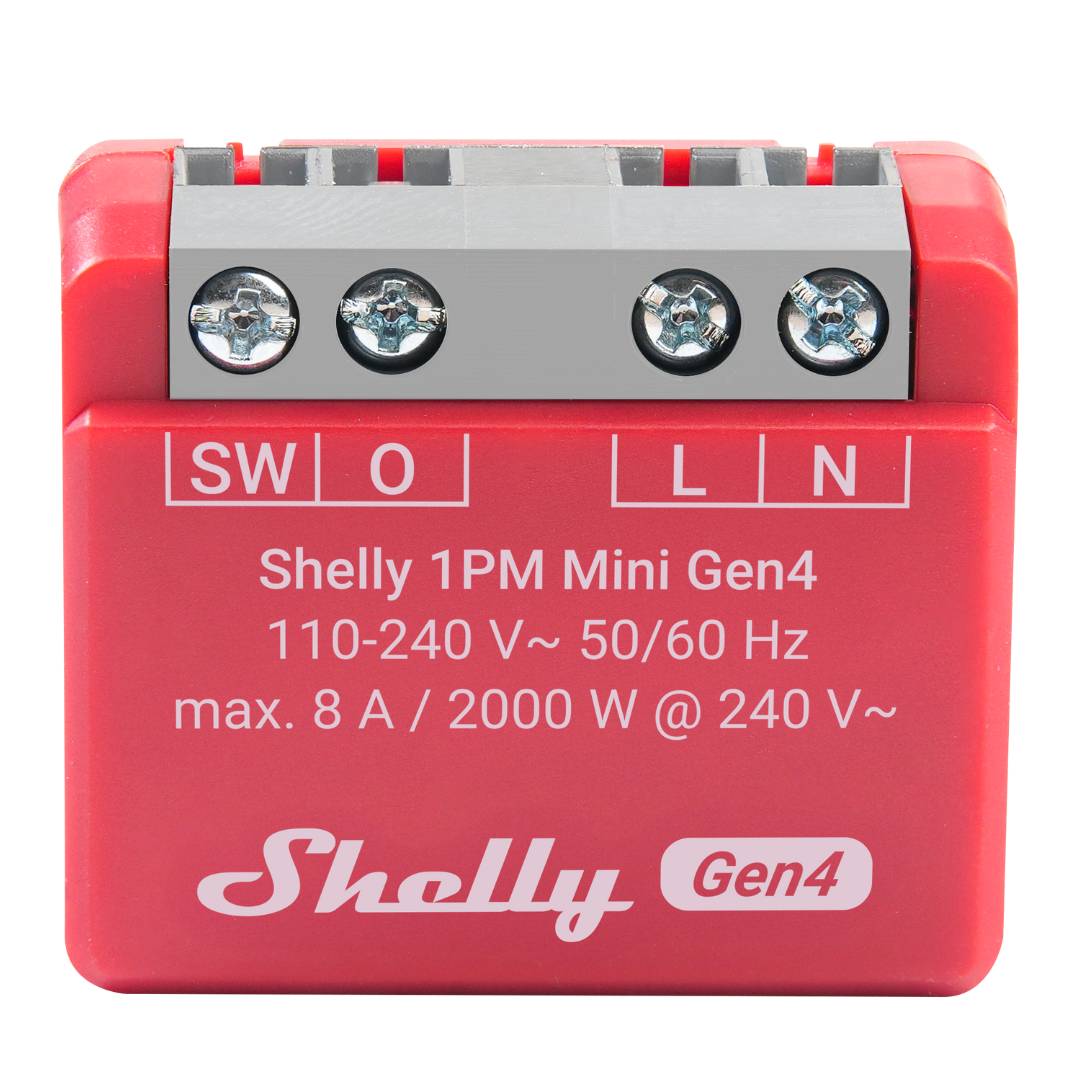

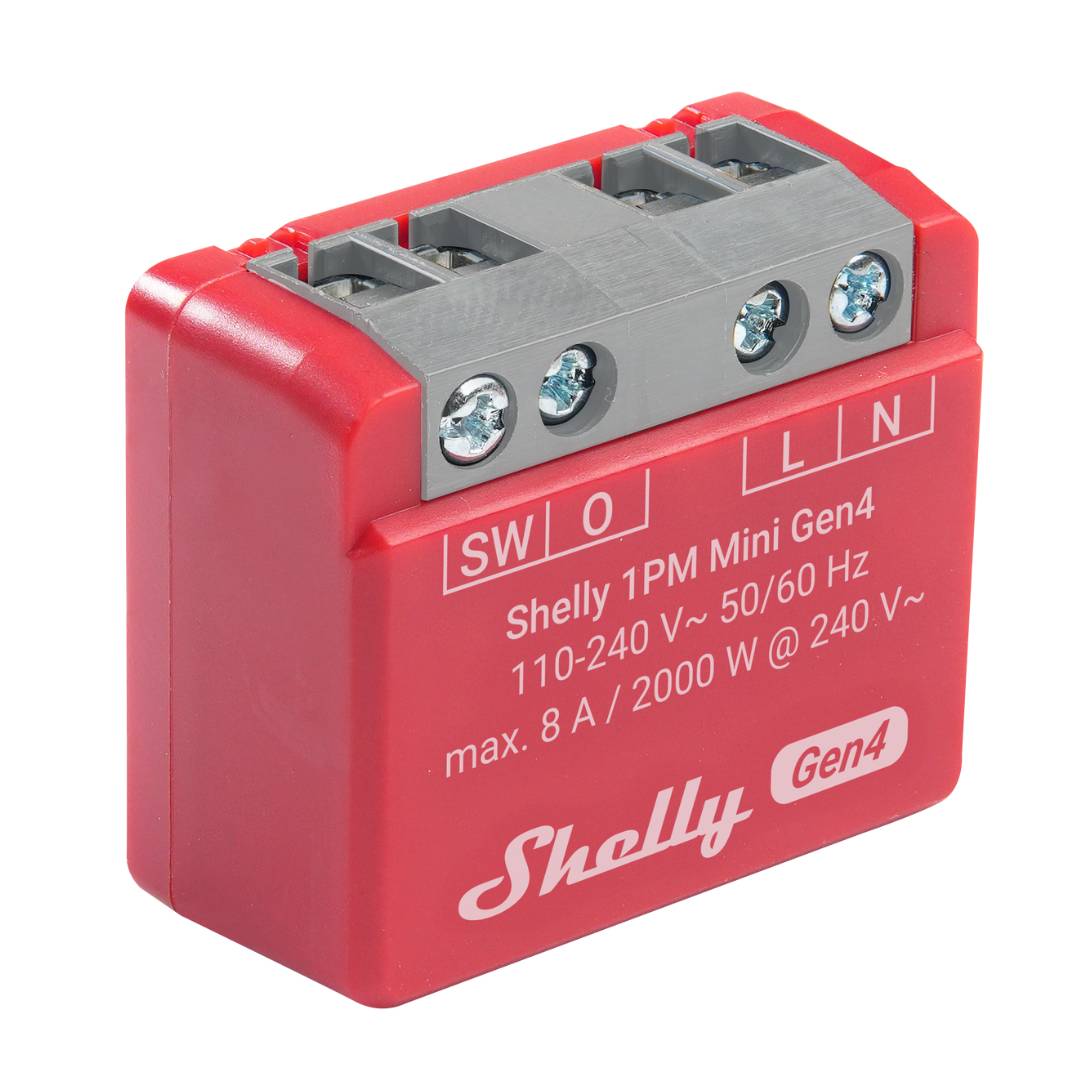

Shelly 1PM Mini Gen4. Wi-Fi, Zigbee, Matter Compact Smart Relay with Power Metering

Shelly 1PM Mini Gen4. Wi-Fi, Zigbee, Matter Compact Smart Relay with Power Metering

SKU:1PM Mini Gen4

Condition: New

Ask for Dealer Price

Regular price $27.99 USD
Regular price $27.99 USD Sale price $27.99 USD
Sale Sold out
Shipping calculated at checkout.
Retail: Get Free Shipping using code FREESHIP at checkout on orders from USD 200 (for US Continental, exclusions applies*).
Shipping to Canada or International? Take advantage of new flat rates.
(*)See terms & conditions

Need more quantity? We have it! Contact us and we will get it for you

100% Secure Payments

Ultra-compact smart relay with power metering. The Shelly 1PM Mini Gen4 is an ultra-compact 1-channel smart relay rated up to 8 A with a built-in power meter. With Wi-Fi 6, Bluetooth, Zigbee and Matter, it brings energy-aware control to lights and appliances from even the tightest electrical boxes.

WHY SHELLY 1PM MINI GEN4?

Energy insight that fits anywhere

At just 29 x 34 x 16 mm, it slips behind switches and sockets or into crowded junction boxes. The integrated meter reports power and energy in real time, with free cloud data storage for analysis and optimization.

The Shelly 1PM Mini Gen4 protects your loads with overvoltage, overcurrent, overpower and overheating cutoffs, runs local schedules, scenes and scripts, and works with Alexa, Google Home, SmartThings, Apple Home (via Matter) and Home Assistant.

KEY FEATURES

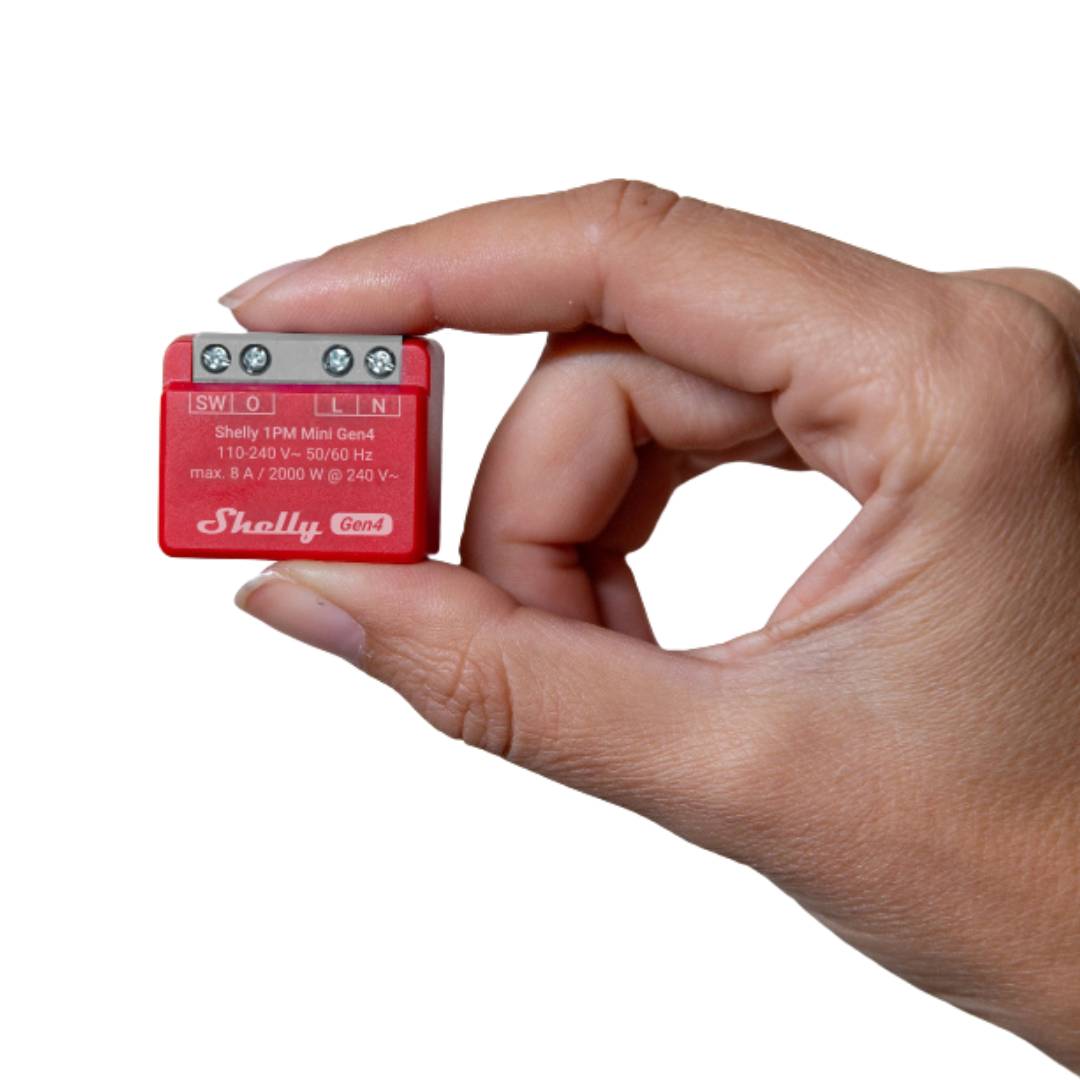

  • Ultra-compact: 29 x 34 x 16 mm for tight electrical boxes
  • Power metering: precise real-time consumption data
  • Multiprotocol: Wi-Fi 6, Bluetooth 5.0 and Zigbee 3.0 in one device
  • Matter certified: works with Apple Home, Google Home, Alexa and SmartThings through Matter
  • Up to 8 A: at 240 V AC
  • Protections: overvoltage, overcurrent, overpower and overheating cutoff
  • Local automation: schedules, scenes, local actions and scripting
  • Open integrations: HTTPS, MQTTS and WebSockets
View full details

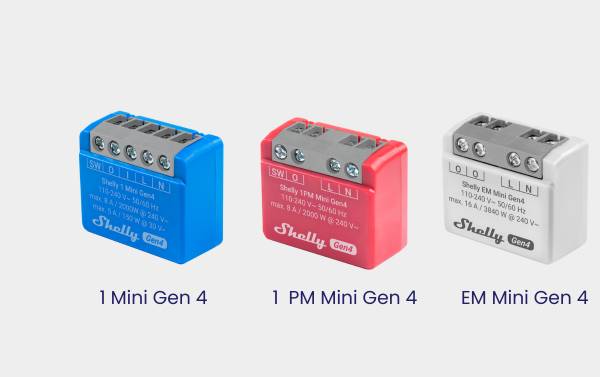

Why Shelly Mini Gen4 Series?

Small size, big impact!

Designed with convenience in mind, these mini devices have all the capabilities of Shelly's standard smart devices fit into a compact form factor.

With an improved processor and 8 MB of memory, the devices deliver enhanced efficiency, responsiveness, and seamless operation.

Each Mini Gen4 device is Matter-certified and supports multi-protocol connectivity, allowing greater flexibility within your smart home setup.

Size does matter!

Shelly's mini devices open up a world of possibilities, allowing you to seamlessly integrate them into even the most tightly packed spaces and switch boxes.

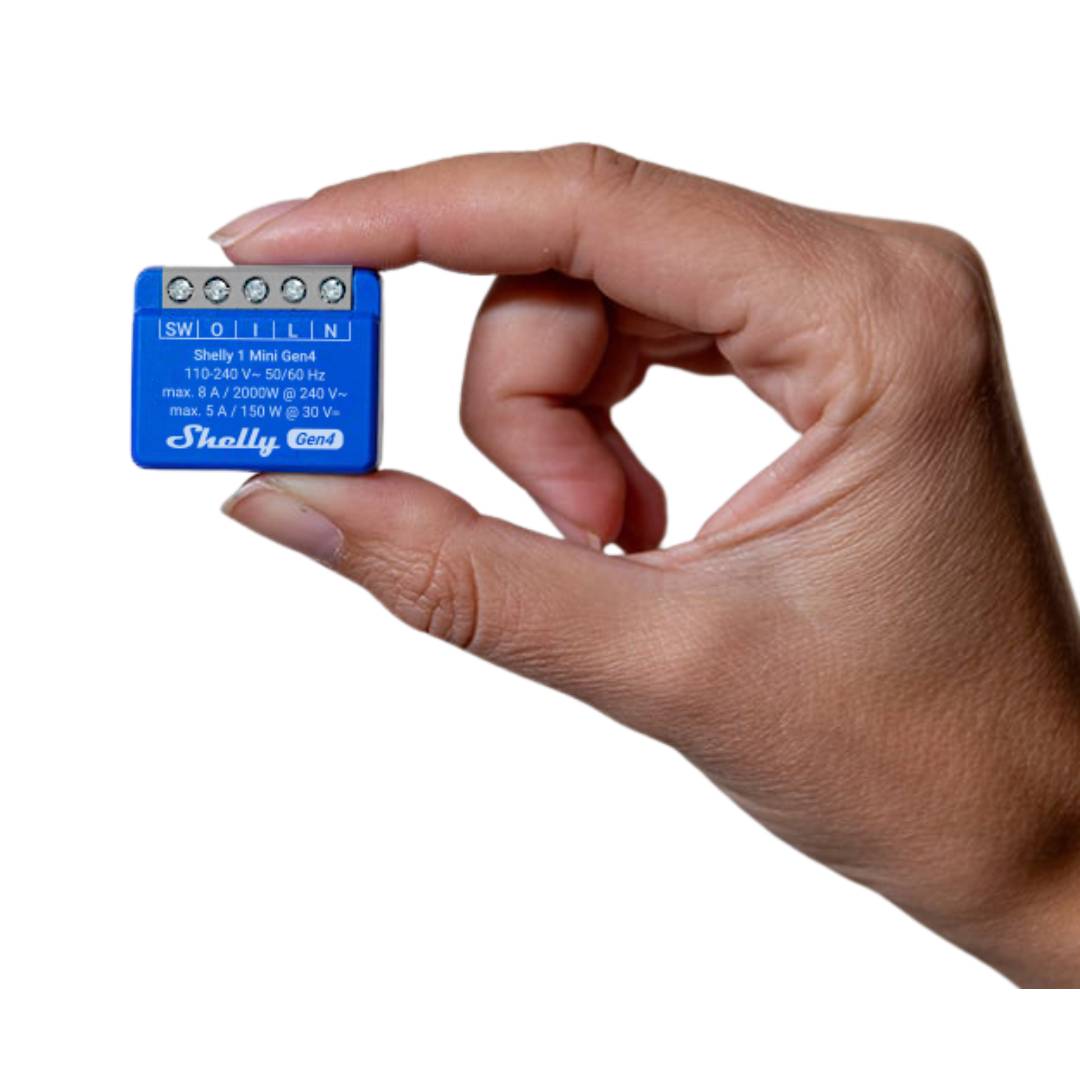

  • 1 Mini Gen 4

    Whether you want to schedule your lights to turn on at sunset or remotely control your fan from the comfort of your couch, Shelly 1 Mini Gen4 puts the power in your hands.

    Typically used for:

    ✔ Lights
    ✔ Appliance
    ✔ Door lock
    ✔ Fan




    View Product
  • 1 PM Mini Gen 4

    The Shelly 1PM Mini Gen4 also tracks power consumption, giving you a clearer picture of how much power each device is using, helping you to reduce waste and optimize your costs.

    Typically used for:

    ✔ Lights
    ✔ Appliance
    ✔ Door lock
    ✔ Doorbell
    ✔ Fan

    View Product

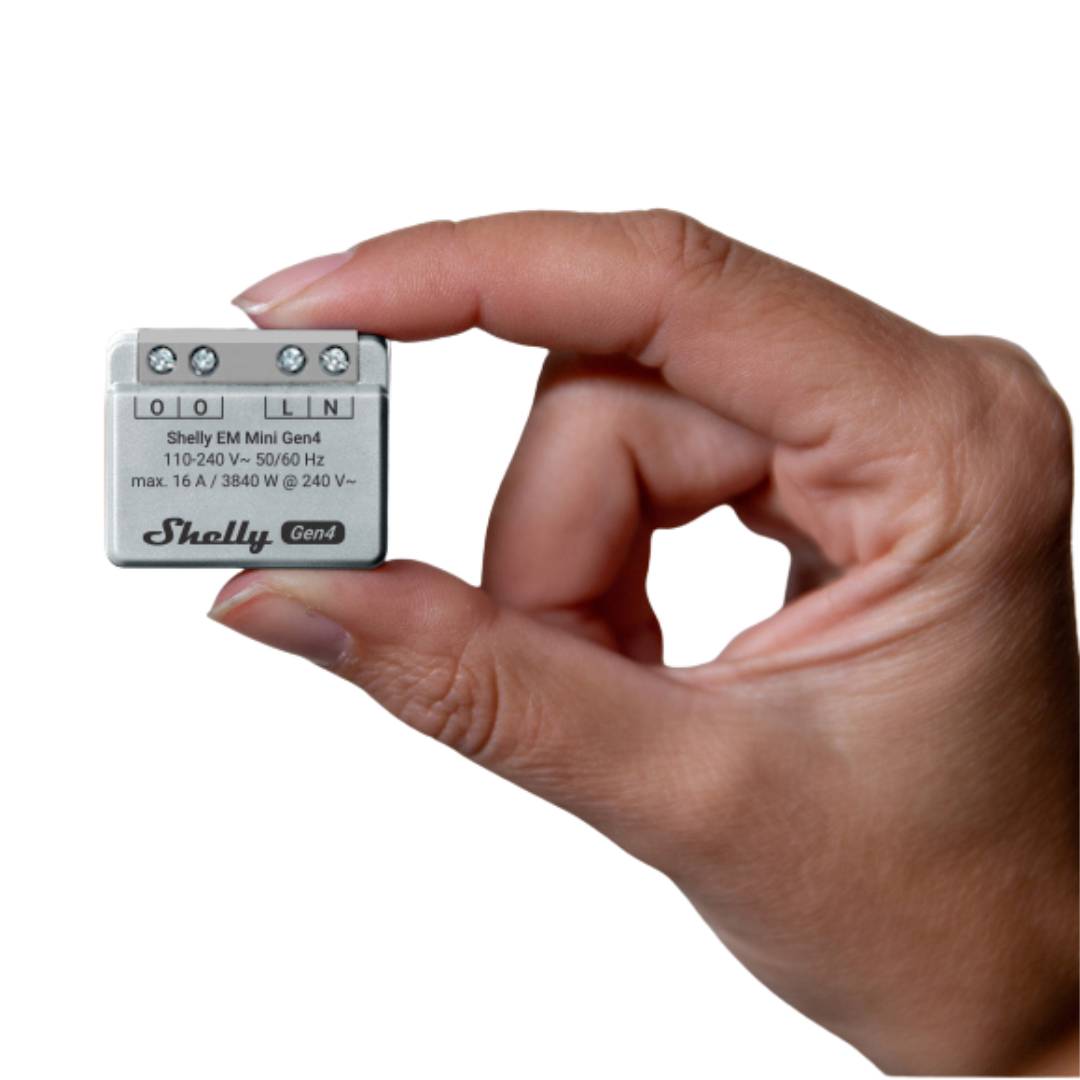

  • EM Mini Gen 4

    The Shelly EM Mini Gen4 tracks the energy consumption of the connected appliance or device, giving you a clearer picture of how much energy each device is using, helping you to reduce waste and optimize your costs.

    Typically used for:

    ✔
    Energy Measurement
    ✔ Energy saving

    View Product

Gen4 devices

Experience next-level smart home automation with Shelly Gen4 novelties.
Each Gen4 device offers multi-protocol connectivity, featuring Wi-Fi, Bluetooth, Zigbee, and Matter.
Choose your connection and set up your Shelly device to work with your preferred smart home network in no time.

  • Energy Monitoring

    Track the consumption of lights or appliances circuit by circuit.

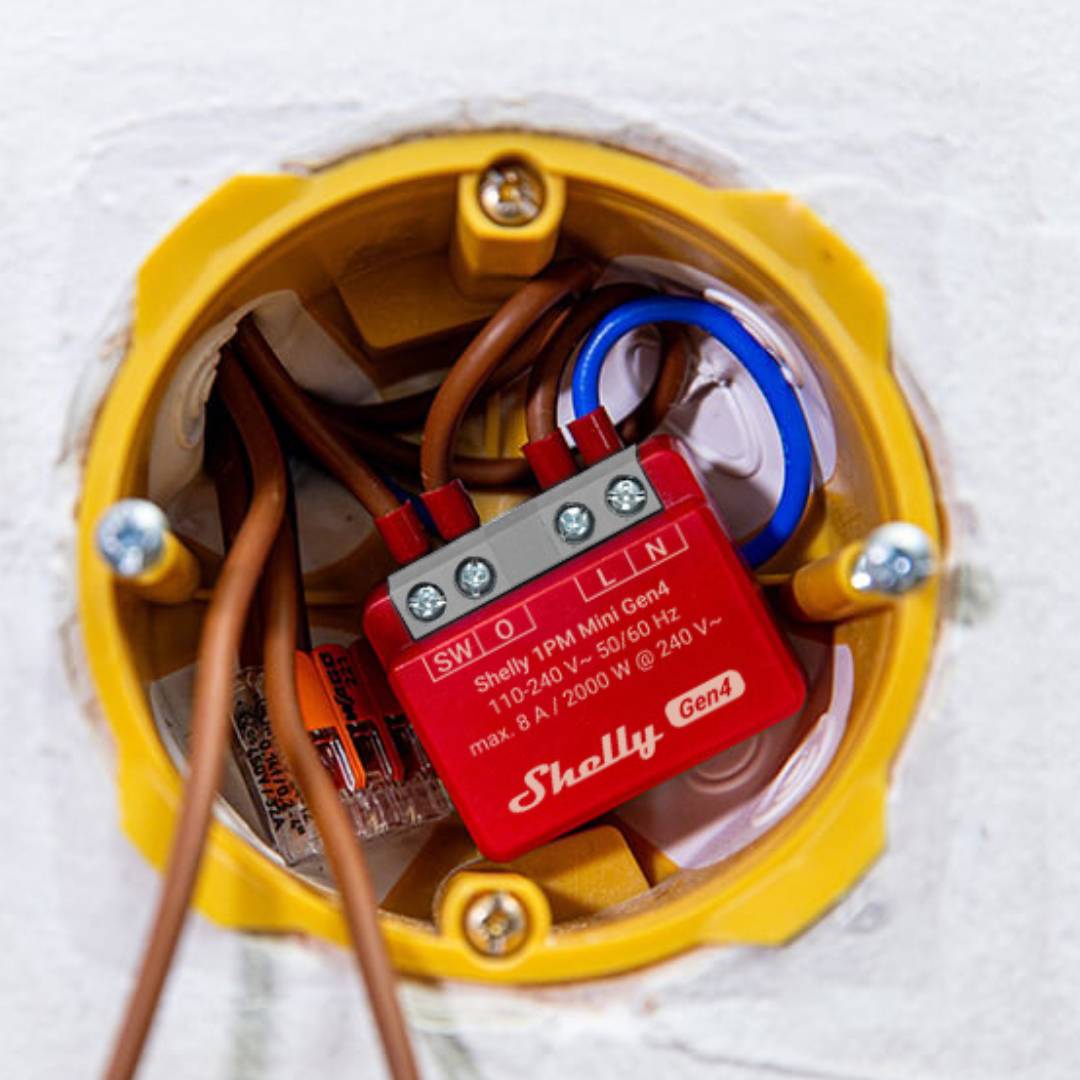

  • Tight Electrical Boxes

    Make existing lights smart even in shallow or crowded wall boxes.
  • Appliance Alerts

    Detect when a washer or dryer finishes by its power draw and send a notification.
  • Standby Power Cut

    Switch off devices automatically when their consumption shows they are idle.
  • Heating Control

    Control small heaters or towel warmers by schedule while measuring their use.
  • Rental Properties

    Monitor and limit energy use of specific circuits in apartments and short-term rentals.
  • Ultra-Compact Design

    Fits behind switches and sockets or into crowded junction boxes.

  • Power Metering

    Real-time power and energy data with free cloud storage for analysis.

  • Multiprotocol Connectivity

    Choose the best protocol for your smart home: Wi-Fi, Zigbee, Matter or Bluetooth.

  • Matter Certified

    Integrates into any Matter ecosystem, including Apple Home, Google Home and Alexa.

  • Load Protection

    Automatic cutoff on overvoltage, overcurrent, overpower and overheating.

  • Smart Schedules

    Set custom schedules based on your agenda or follow sunrise and sunset.

Frequently Asked Questions

What is the difference between the 1 Mini Gen4 and the 1PM Mini Gen4?

The 1PM Mini Gen4 includes power metering and load protections. The 1 Mini Gen4 has dry contacts but does not measure consumption.

No. When connected via Wi-Fi, no hub is required. A Zigbee or Matter hub is needed only if you choose those protocols.

What is the maximum load?

Up to 8 A at 240 V AC.

The 1PM Mini Gen4 includes power metering, allowing you to monitor real-time energy consumption. The Shelly 1 Mini Gen4 does not.

Does it need a hub?

No hub is needed over Wi-Fi. For Zigbee or Matter you need a compatible Zigbee hub or Matter controller.

Yes. Shelly 1PM Mini Gen4 is Matter-certified and works with Apple Home through a Matter-compatible hub.

Does it protect the connected load?

Yes. It switches off automatically on overvoltage, overcurrent, overpower or overheating.

Absolutely. Its ultra-compact size is specifically designed for tight spaces where standard smart relays won’t fit.

Will it keep working without internet?

Yes. Schedules, scenes, local actions and scripts run locally on your network, even if the internet connection is down.

Yes. Open Box units are professionally inspected and tested by Digital Bay Tech to ensure proper operation. Cosmetic imperfections may be present. Final sale conditions apply.

No hub required, Universally compatible

Shelly Products can be controlled locally, directly and without a hub through your smartphone/table with Shelly App - no hub or other equipment needed with Wi-Fi Protocol.(*)
Enable cloud feature and get remote control from anywhere. At the same time, you can integrate Shelly directly with virtually every smart home hub, voice assistant, open source platform, or premium control system.

(*) Platform app / Hub required when used with Zigbee / Matter

Shelly App
Shelly compatible platforms Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms

No hub required, Universally compatible

Shelly Products can be controlled locally, directly and without a hub through your smartphone/table with Shelly App - no hub or other equipment needed with Wi-Fi Protocol.(*)
Enable cloud feature and get remote control from anywhere. At the same time, you can integrate Shelly directly with virtually every smart home hub, voice assistant, open source platform, or premium control system.

(*) Platform app / Hub required when used with Zigbee / Matter

Shelly App
Shelly compatible platforms
Shelly compatible platforms
Shelly compatible platforms
Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms
Specifications

DEVICE

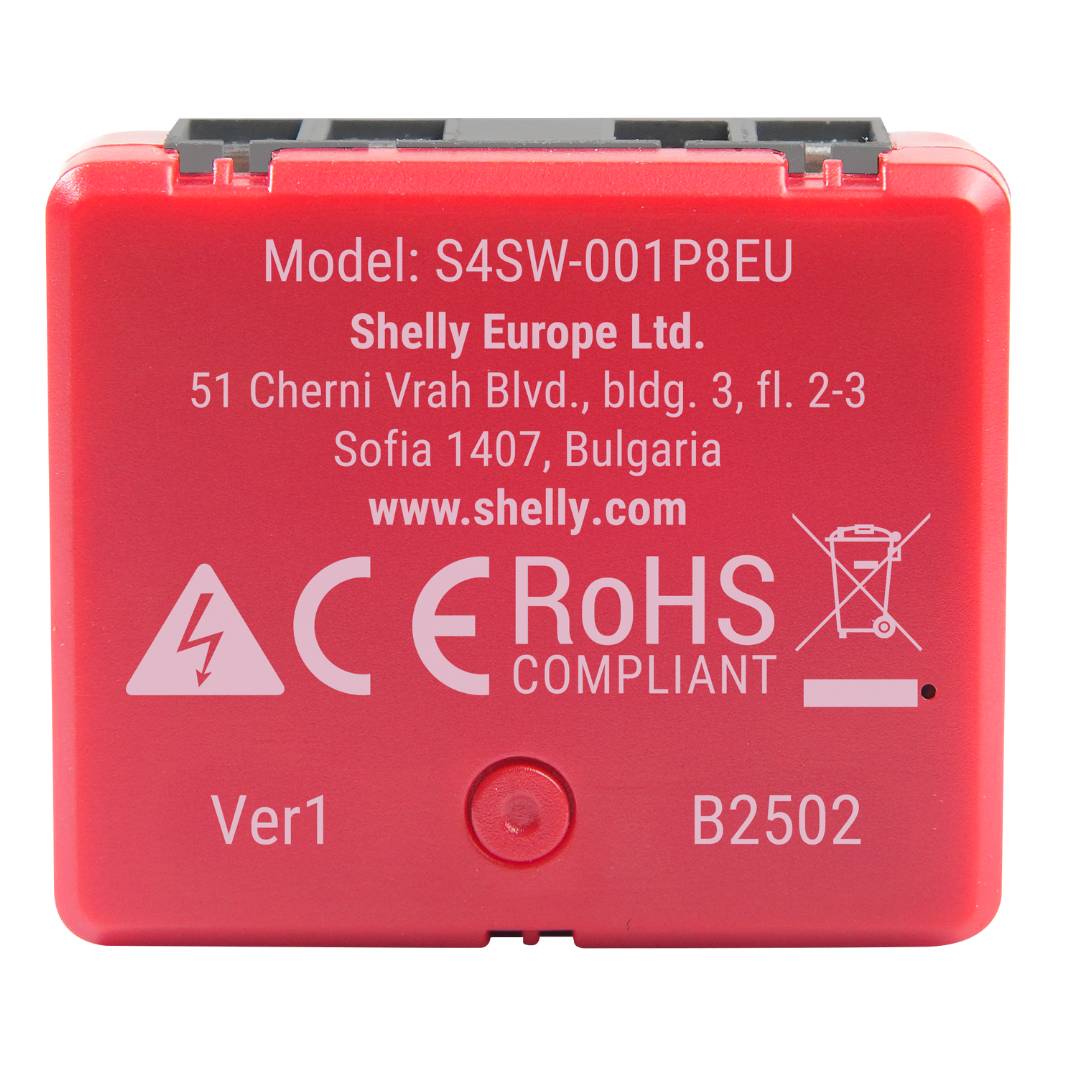

ModelS4SW-001P8EU
PHYSICAL

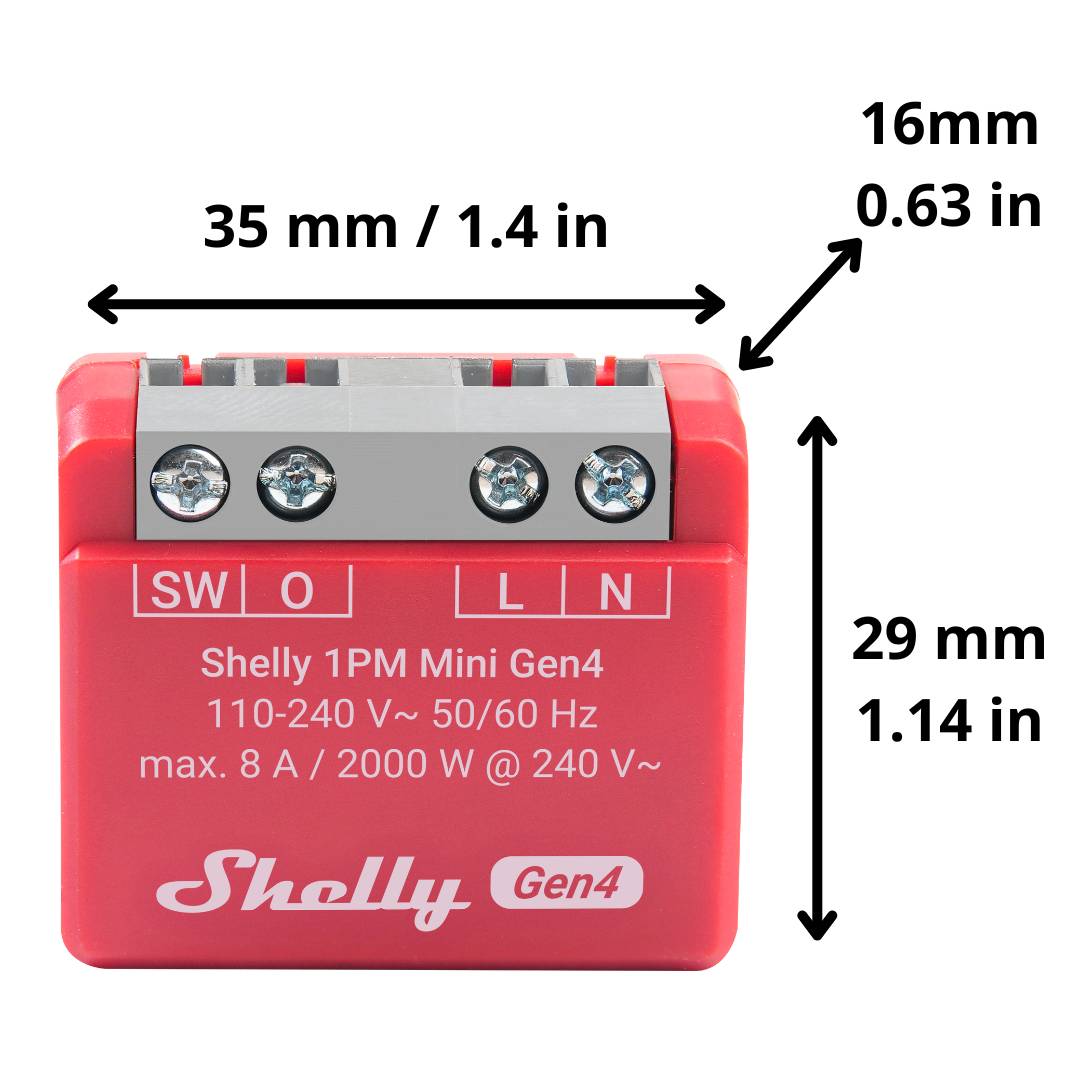

Size (HxWxD)29 x 34 x 16 mm / 1.14 x 1.34 x 0.63 in
Weight18 g / 0.63 oz
MountingIn-wall (electrical box)
Conductor cross section0.5 to 4 mm² / 20 to 11 AWG
Conductor stripped length6 to 7 mm / 0.24 to 0.28 in
Screw terminals max. torque0.4 Nm / 3.5 lbin
Shell material / colorPlastic / Red
ENVIRONMENTAL
Ambient working temperature-20°C to 40°C / -5°F to 105°F
Humidity30% to 70% RH
Max. altitude2000 m / 6562 ft
ELECTRICAL
Power supply110-240 V AC
Output1 relay (NO) with power measurement
Max. switching current8 A / 240 V AC
Inputs1 switch/button input
ProtectionsOvervoltage, overcurrent, overpower, overheating
RADIO
Wi-Fi802.11 b/g/n/ax (Wi-Fi 6), 2.4 GHz; up to 30 m / 100 ft indoors, 50 m / 160 ft outdoors
Bluetooth5.0 (LE); up to 10 m / 33 ft indoors, 30 m / 100 ft outdoors
Zigbee3.0 (802.15.4), repeater; up to 100 m / 328 ft indoors, 300 m / 984 ft outdoors
MatterYes (over Wi-Fi, default profile)
MICROCONTROLLER & FIRMWARE
CPU / FlashESP-Shelly-C68F / 8 MB
Schedules20
Webhooks (URL actions)20 with 5 URLs per hook
Scripting / MQTT / KNXnet/IPYes / Yes / Yes

Collapsible content

Warranty

New Products

  • USA Pro Market Manufacturer Warranty: Lifetime manufacturer warranty (only if installed by a professional within USA) when purchased at Digital Bay Tech.

  • Retail Standard Manufacturer Warranty (included in purchase price): 2, 3 or 5 years manufacturer warranty covers only the hardware (corpus, mechanics, and display, if any) and does not cover consumables (battery) and accessories insofar as these are subject to exhaustion (decrease of their useful life) depending on the intensity of their use. Device malfunctions are only covered when device is used as described conditions within user manual (max loads, proper installation, etc.). Please check refund policy for further details.
  • Gen 1: 2 years.
  • Plus, Gen3, Gen4, Wave: 3 years.
  • Pro Line: 5 years.

Special Notes

  • Do It Yourself: Devices are technically user-installable in many locales, nevertheless consulting a licensed electrician to install shelly components is recommended; in addition to being licensed to work with electrical devices, they are also familiar with local building codes and regulations to keep your safety.
  • Manufacturer's Safety note: Each Shelly device generates heat under load. Do not combine two or more Shelly devices stacked on top of or beside each other in a confined space. There must be a minimum distance of 0.4 inch / 1 cm between them to allow for airflow.
