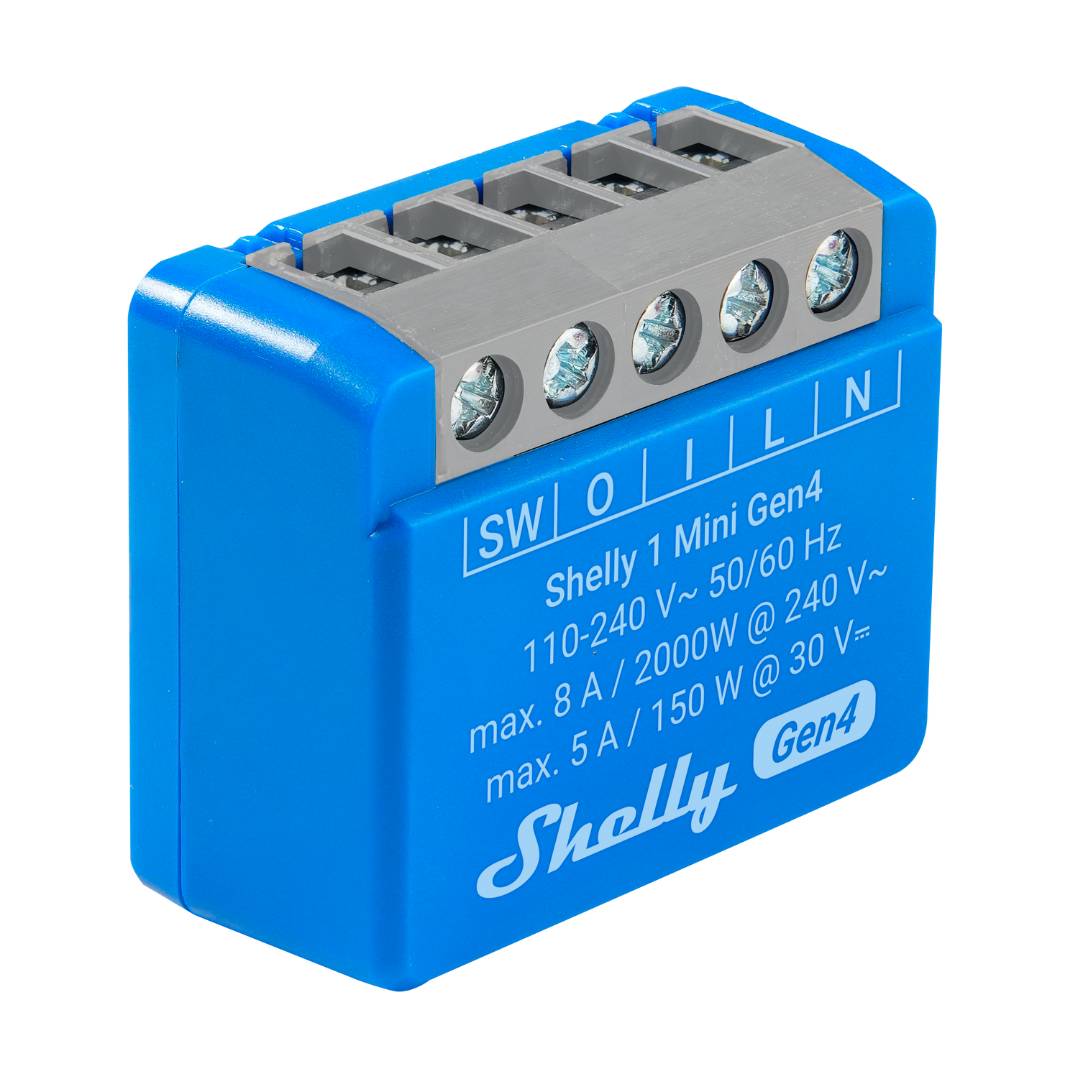

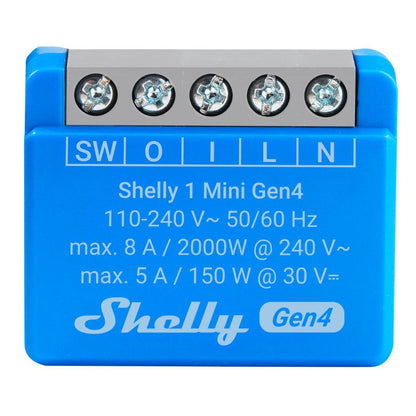

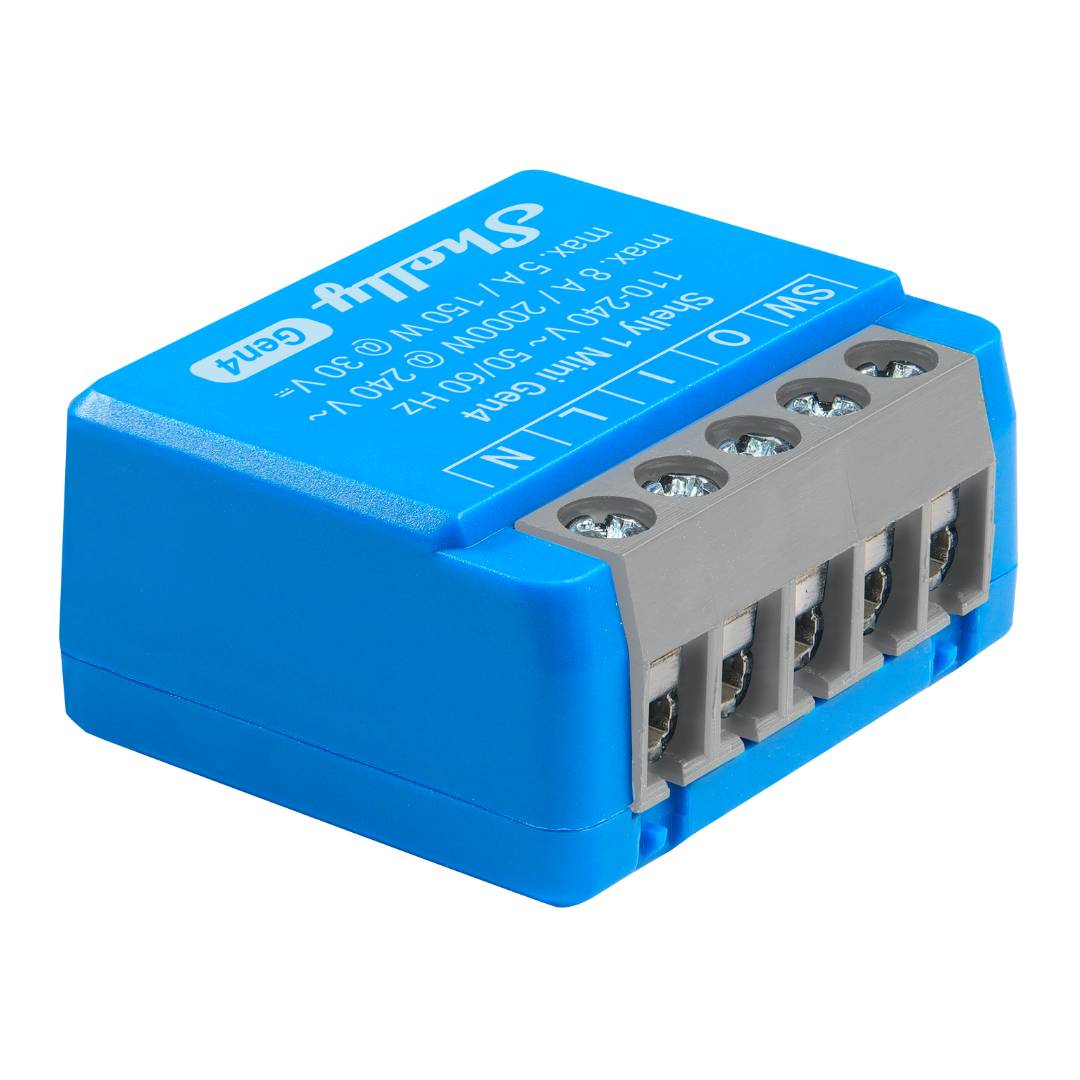

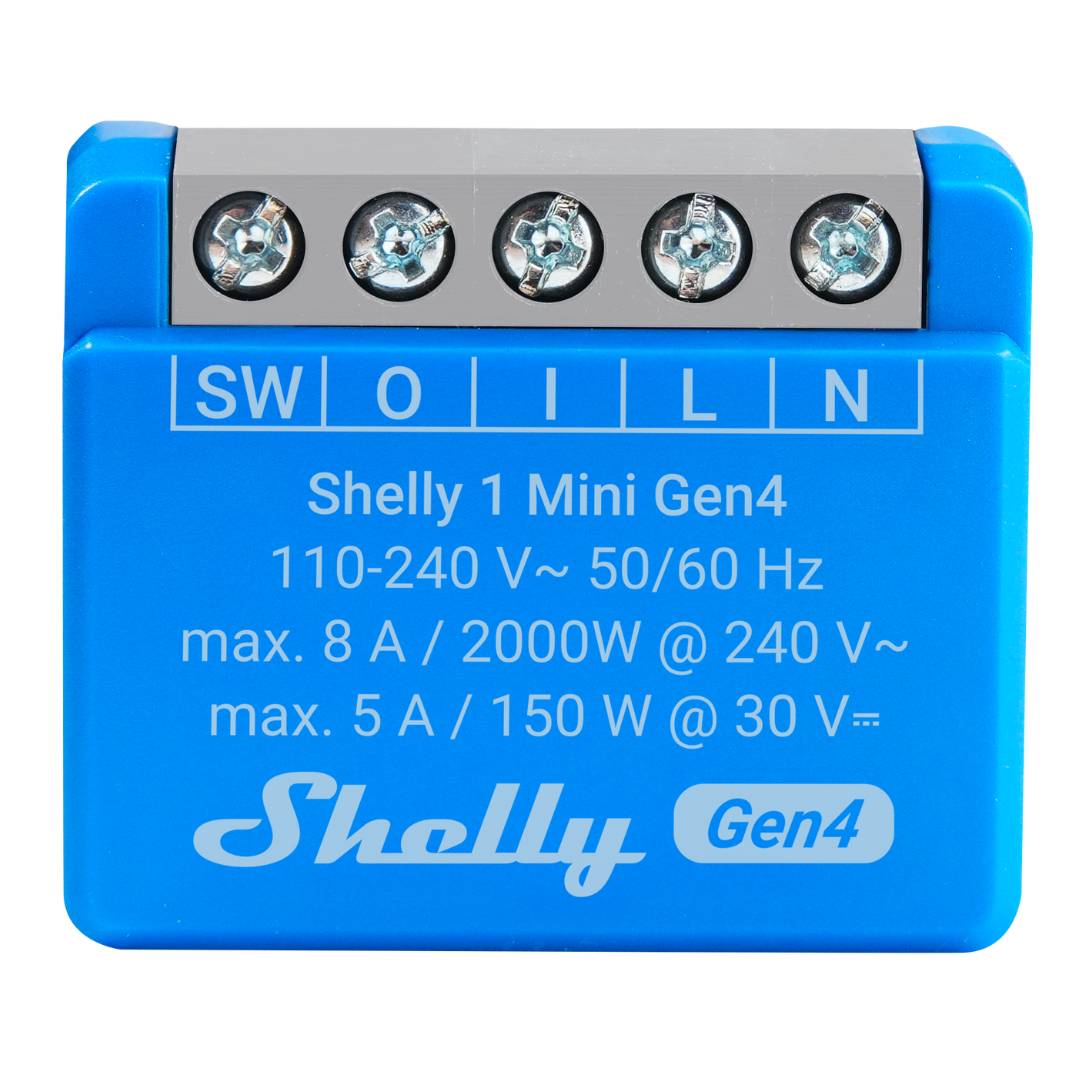

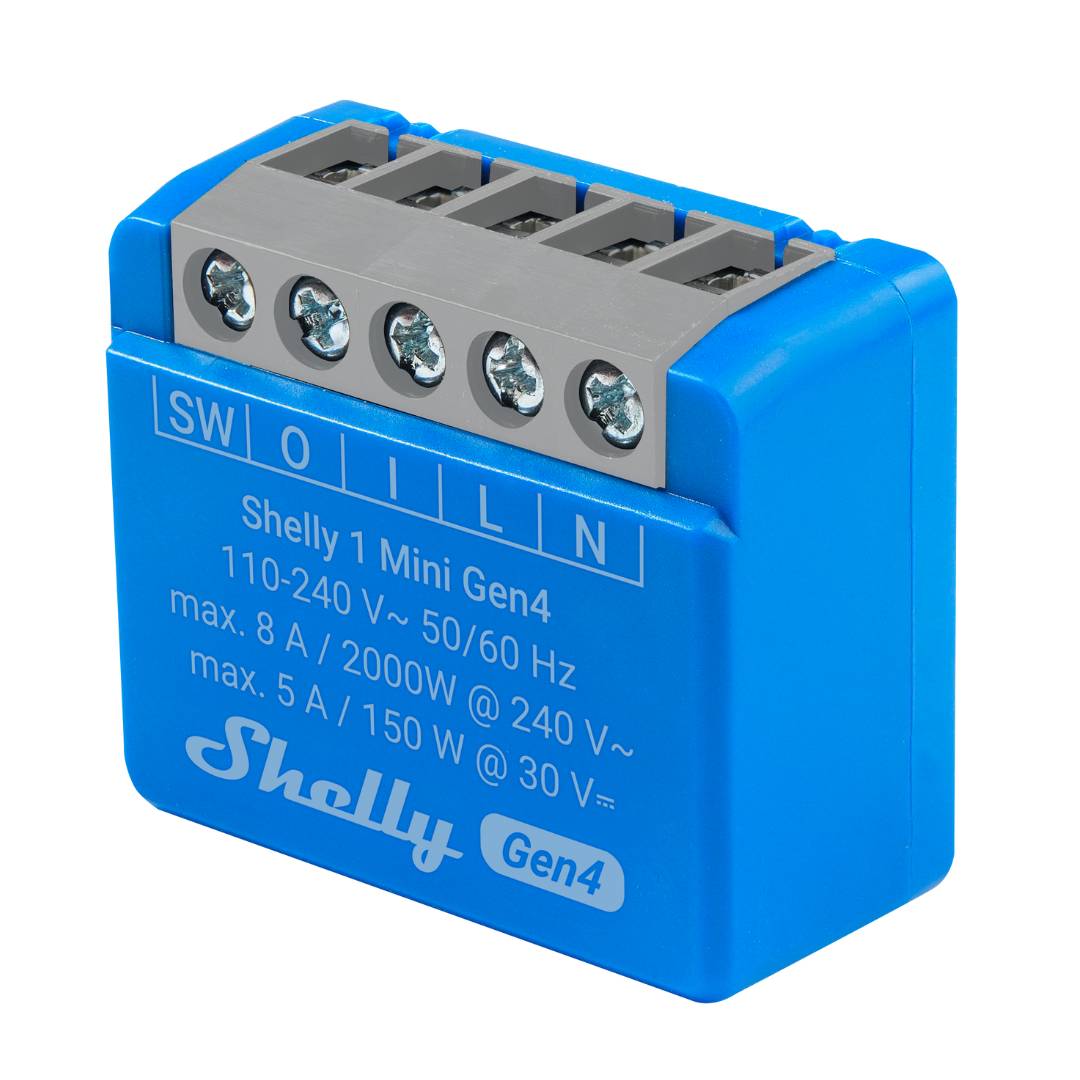

Shelly 1 Mini Gen4. Ultra-Compact WiFi / Zigbee / Matter Smart Relay Switch with Dry Contacts (8A)

Shelly 1 Mini Gen4. Ultra-Compact WiFi / Zigbee / Matter Smart Relay Switch with Dry Contacts (8A)

SKU:1 Mini Gen4

Condition: New

Ask for Dealer Price

Regular price $24.99 USD
Regular price $24.99 USD Sale price $24.99 USD
Sale Sold out
Shipping calculated at checkout.
Retail: Get Free Shipping using code FREESHIP at checkout on orders from USD 200 (for US Continental, exclusions applies*).
Shipping to Canada or International? Take advantage of new flat rates.
(*)See terms & conditions

Need more quantity? We have it! Contact us and we will get it for you

100% Secure Payments

The smallest Shelly dry-contact relay, now with Matter. The Shelly 1 Mini Gen4 is an ultra-compact 1-channel smart relay with potential-free (dry) contacts rated up to 8 A. With Wi-Fi 6, Bluetooth, Zigbee and Matter, it fits into tight electrical boxes where standard relays will not, and controls lights, small appliances, garage doors and access systems.

WHY SHELLY 1 MINI GEN4?

Big features in a tiny footprint

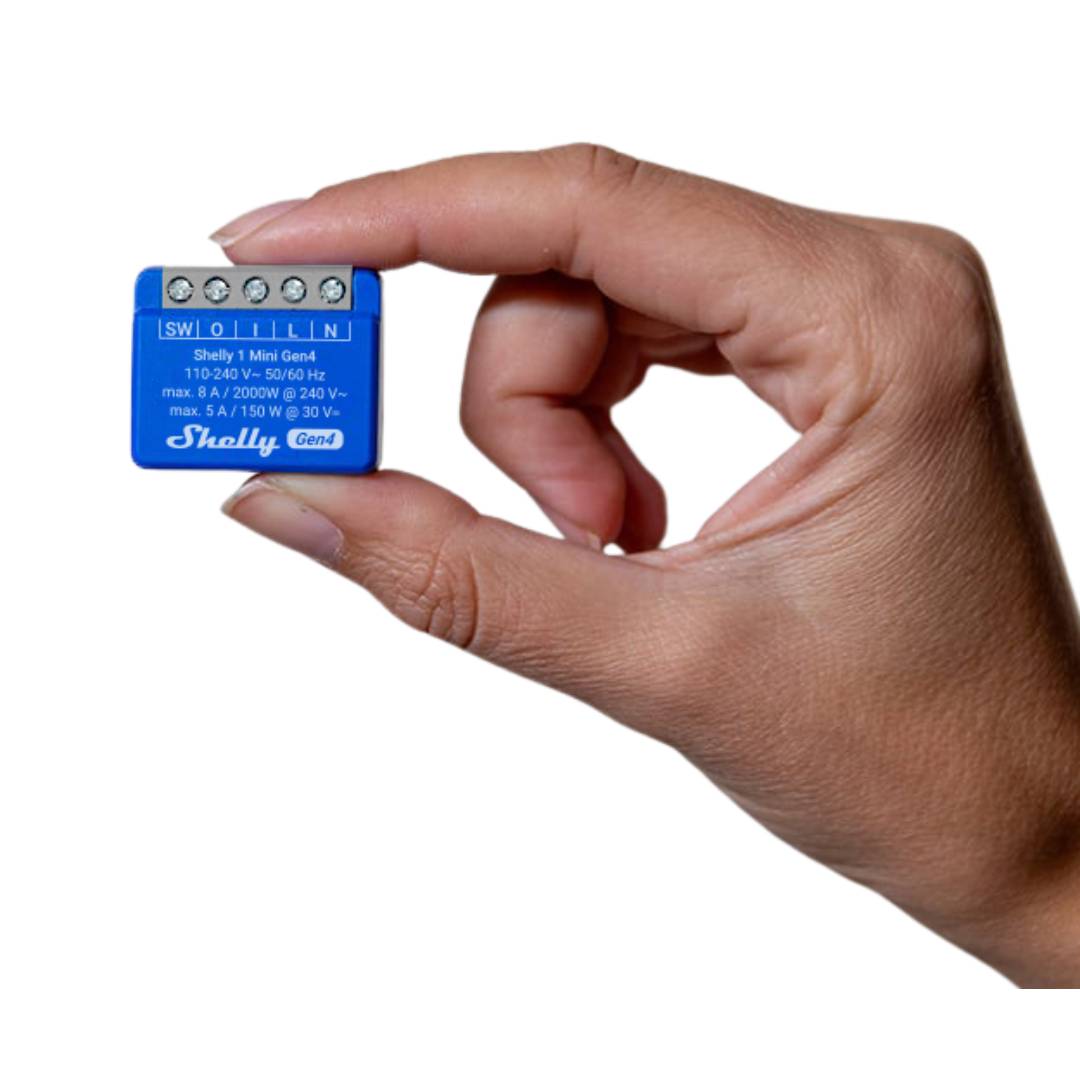

At just 29 x 34 x 16 mm, it slips behind switches and sockets or into crowded junction boxes. The dry-contact output switches line-voltage loads up to 8 A and low-voltage circuits up to 5 A at 30 V DC, which makes it ideal for garage door openers, gates, doorbells and contactors.

The Shelly 1 Mini Gen4 runs local schedules, scenes and scripts, extends Wi-Fi and Zigbee coverage, acts as a Bluetooth gateway for Shelly BLU devices, and works with Alexa, Google Home, SmartThings, Apple Home (via Matter) and Home Assistant.

KEY FEATURES

  • Ultra-compact: 29 x 34 x 16 mm for tight electrical boxes
  • Multiprotocol: Wi-Fi 6, Bluetooth 5.0 and Zigbee 3.0 in one device
  • Matter certified: works with Apple Home, Google Home, Alexa and SmartThings through Matter
  • Dry contacts: up to 8 A at 240 V AC and 5 A at 30 V DC
  • Range extender & gateway: extends Wi-Fi and Zigbee and bridges Shelly BLU devices
  • Local automation: schedules, scenes, local actions and scripting
  • Open integrations: HTTPS, MQTTS and WebSockets
  • Overheating protection: internal temperature sensor
View full details

Why Shelly Mini Gen4 Series?

Small size, big impact!

Designed with convenience in mind, these mini devices have all the capabilities of Shelly's standard smart devices fit into a compact form factor.

With an improved processor and 8 MB of memory, the devices deliver enhanced efficiency, responsiveness, and seamless operation.

Each Mini Gen4 device is Matter-certified and supports multi-protocol connectivity, allowing greater flexibility within your smart home setup.

Size does matter!

Shelly's mini devices open up a world of possibilities, allowing you to seamlessly integrate them into even the most tightly packed spaces and switch boxes.

  • 1 Mini Gen 4

    Whether you want to schedule your lights to turn on at sunset or remotely control your fan from the comfort of your couch, Shelly 1 Mini Gen4 puts the power in your hands.

    Typically used for:

    ✔ Lights
    ✔ Appliance
    ✔ Door lock
    ✔ Fan




    View Product
  • 1 PM Mini Gen 4

    The Shelly 1PM Mini Gen4 also tracks power consumption, giving you a clearer picture of how much power each device is using, helping you to reduce waste and optimize your costs.

    Typically used for:

    ✔ Lights
    ✔ Appliance
    ✔ Door lock
    ✔ Doorbell
    ✔ Fan

    View Product
  • EM Mini Gen 4

    The Shelly EM Mini Gen4 tracks the energy consumption of the connected appliance or device, giving you a clearer picture of how much energy each device is using, helping you to reduce waste and optimize your costs.

    Typically used for:

    ✔
    Energy Measurement
    ✔ Energy saving

    View Product

Gen4 devices

Experience next-level smart home automation with Shelly Gen4 novelties.
Each Gen4 device offers multi-protocol connectivity, featuring Wi-Fi, Bluetooth, Zigbee, and Matter.
Choose your connection and set up your Shelly device to work with your preferred smart home network in no time.

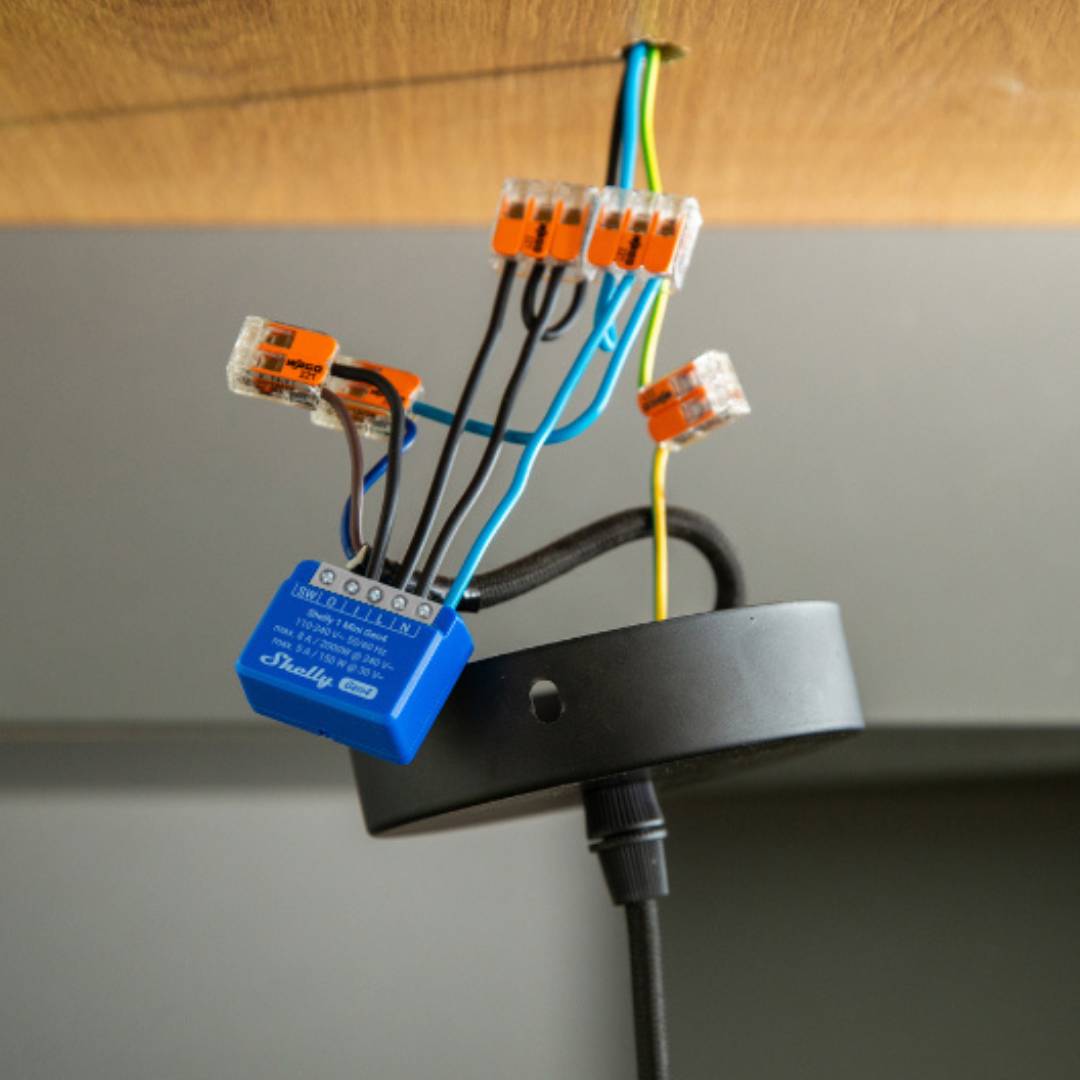

  • Tight Electrical Boxes

    Make existing lights smart even in shallow or crowded wall boxes.
  • Garage Door Opener

    Trigger the opener with the dry contact and check status with a door sensor.
  • Gates & Access Control

    Open gates or electric strikes remotely for visitors and deliveries.
  • Irrigation

    Switch low-voltage irrigation valves on a schedule.
  • Small Appliances

    Automate fans, pumps or small appliances by schedule or sensor.
  • Doorbells

    Add smart control to a doorbell circuit and trigger automations when it rings.
  • Ultra-Compact Design

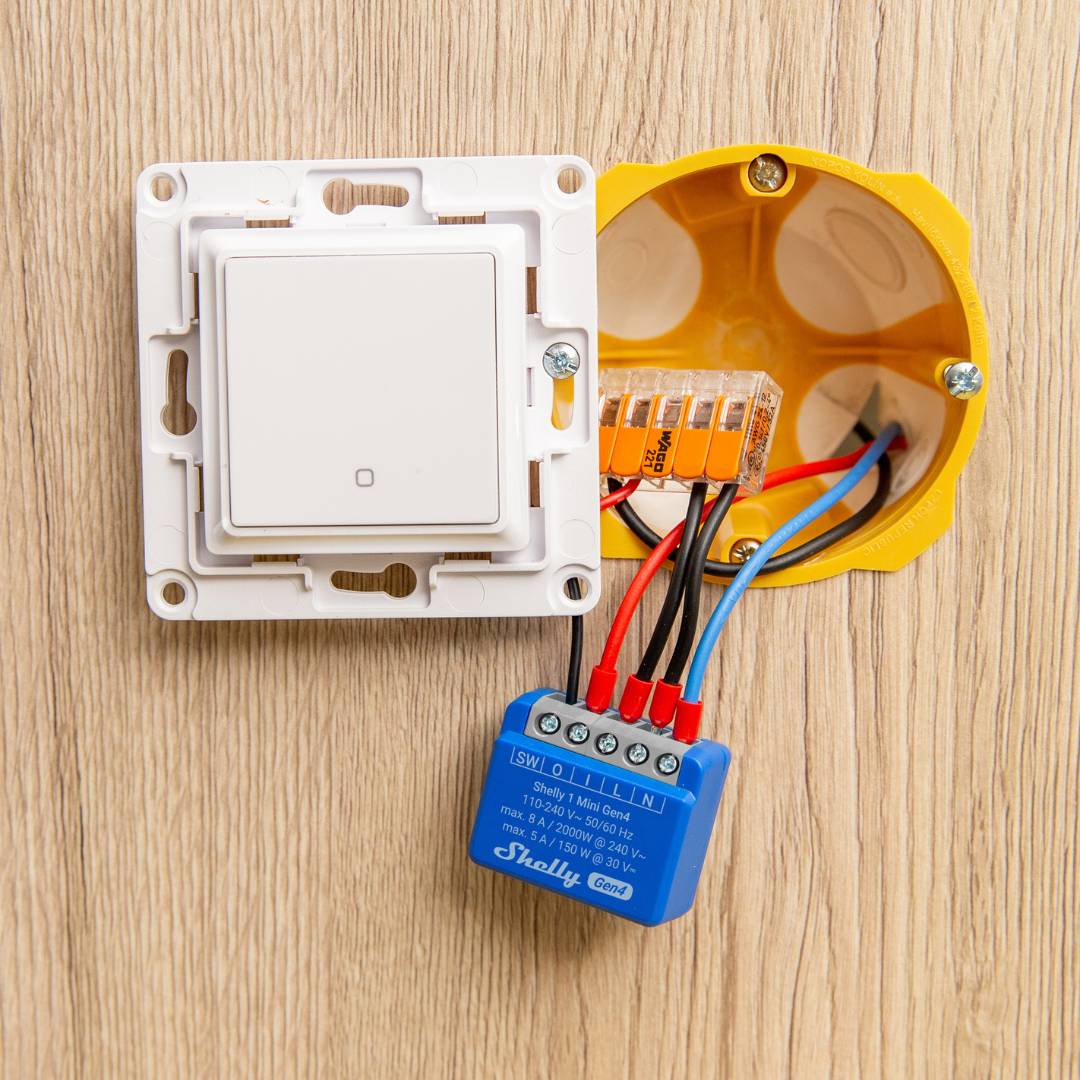

    Fits behind switches and sockets or into crowded junction boxes where other relays do not.

  • Multiprotocol Connectivity

    Choose the best protocol for your smart home: Wi-Fi, Zigbee, Matter or Bluetooth.

  • Dry Contacts

    Potential-free output for garage doors, gates, doorbells, contactors and low-voltage devices.

  • Matter Certified

    Integrates into any Matter ecosystem, including Apple Home, Google Home and Alexa.

  • Smart Schedules

    Set custom schedules based on your agenda or follow sunrise and sunset.

  • Range Extender & Gateway

    Extends Wi-Fi and Zigbee coverage and bridges your Shelly BLU devices.

Frequently Asked Questions

What makes the Mini different from the standard Shelly 1 Gen4?

It is much smaller (29 x 34 x 16 mm) for tight boxes, with an 8 A rating instead of 16 A. It keeps dry contacts and full Wi-Fi, Zigbee, Bluetooth and Matter support.

It is a compact smart relay used to control lights, small appliances, garage doors, irrigation systems, and access control devices.

What does "dry contact" mean?

The relay output is potential-free: it opens or closes a circuit without supplying voltage, so it can safely switch low-voltage devices, contactors, garage doors and gates.

No. It works directly over Wi-Fi without a hub. Zigbee or Matter integrations may require a compatible controller.

Does it need a hub?

No hub is needed over Wi-Fi. For Zigbee or Matter you need a compatible Zigbee hub or Matter controller.

The Mini version is significantly smaller, making it ideal for installations where space is limited, while still offering advanced automation features.

What is the maximum load?

Up to 8 A at 240 V AC (2000 W) or 5 A at 30 V DC (150 W).

Yes. Its ultra-compact design makes it perfect for installation behind switches or sockets.

Will it keep working without internet?

Yes. Schedules, scenes, local actions and scripts run locally on your network, even if the internet connection is down.

Yes. Shelly 1 Mini Gen4 supports local control and local automations, allowing schedules and actions to run on the local network.

No hub required, Universally compatible

Shelly Products can be controlled locally, directly and without a hub through your smartphone/table with Shelly App - no hub or other equipment needed with Wi-Fi Protocol.(*)
Enable cloud feature and get remote control from anywhere. At the same time, you can integrate Shelly directly with virtually every smart home hub, voice assistant, open source platform, or premium control system.

(*) Platform app / Hub required when used with Zigbee / Matter

Shelly App
Shelly compatible platforms Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms Shelly compatible platforms

No hub required, Universally compatible

Shelly Products can be controlled locally, directly and without a hub through your smartphone/table with Shelly App - no hub or other equipment needed with Wi-Fi Protocol.(*)
Enable cloud feature and get remote control from anywhere. At the same time, you can integrate Shelly directly with virtually every smart home hub, voice assistant, open source platform, or premium control system.

(*) Platform app / Hub required when used with Zigbee / Matter

Shelly App
Shelly compatible platforms
Shelly compatible platforms
Shelly compatible platforms
Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms
Shelly compatible platforms Shelly compatible platforms
Specifications

DEVICE

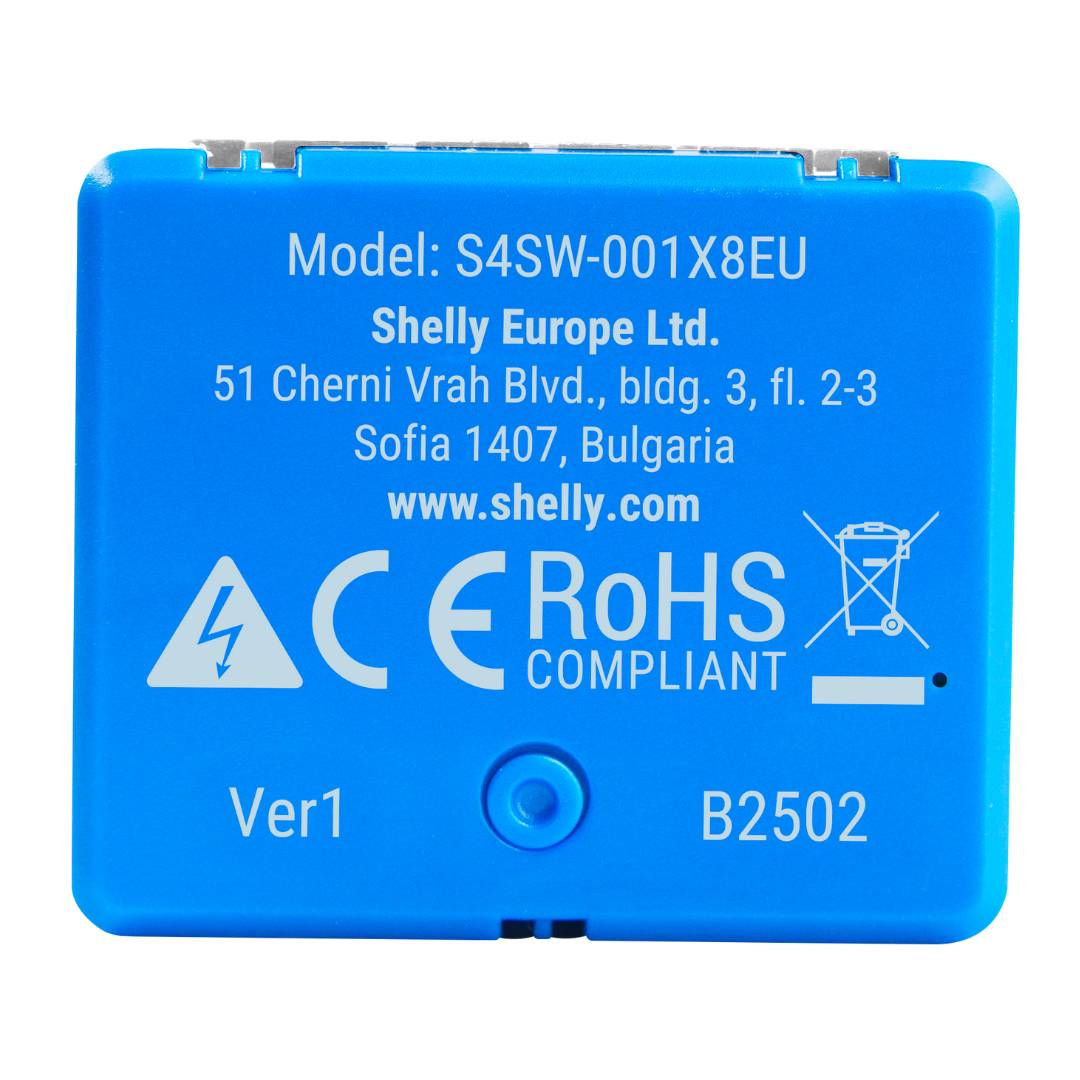

ModelS4SW-001X8EU
PHYSICAL

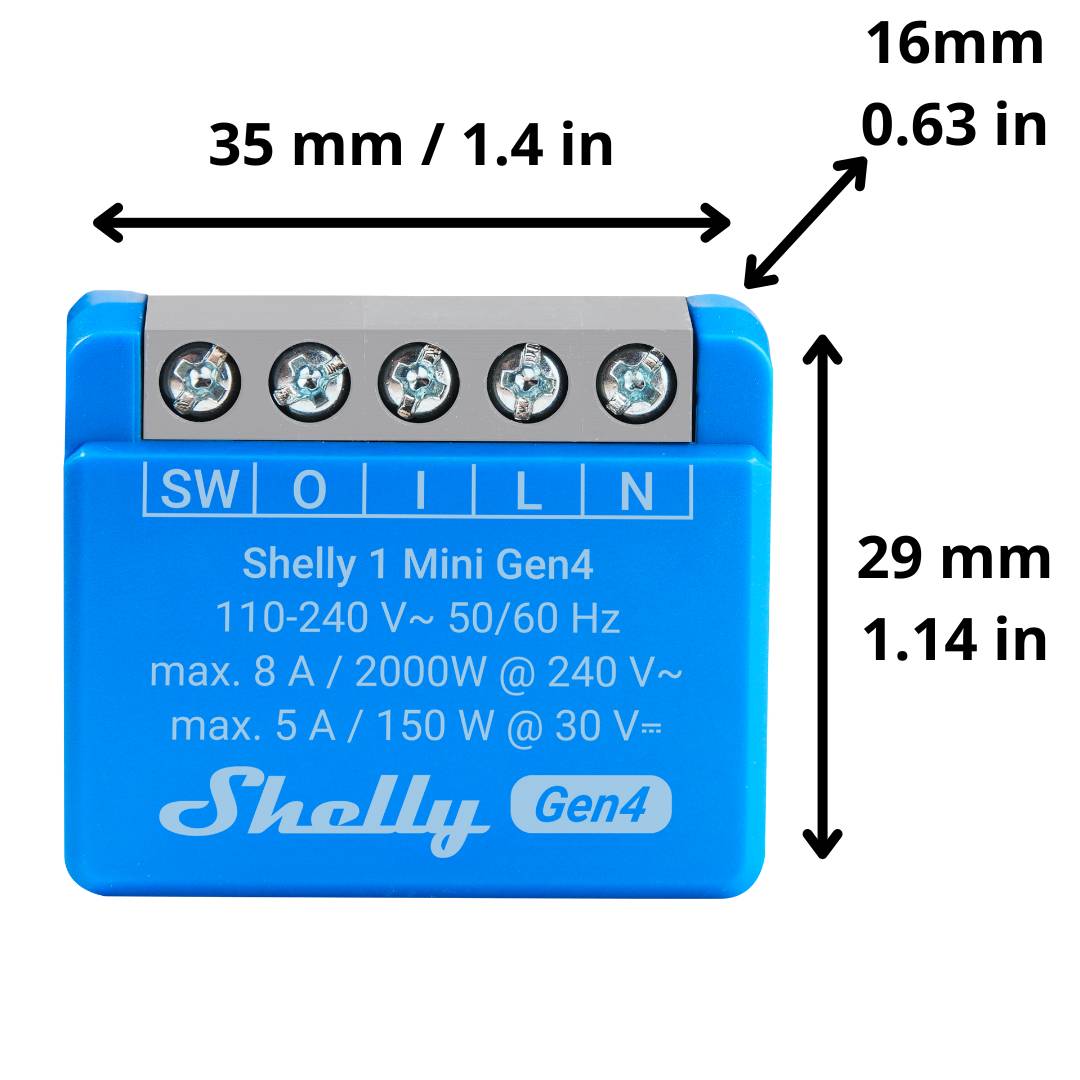

Size (HxWxD)29 x 34 x 16 mm / 1.14 x 1.34 x 0.63 in
Weight19 g / 0.67 oz
MountingIn-wall (electrical box)

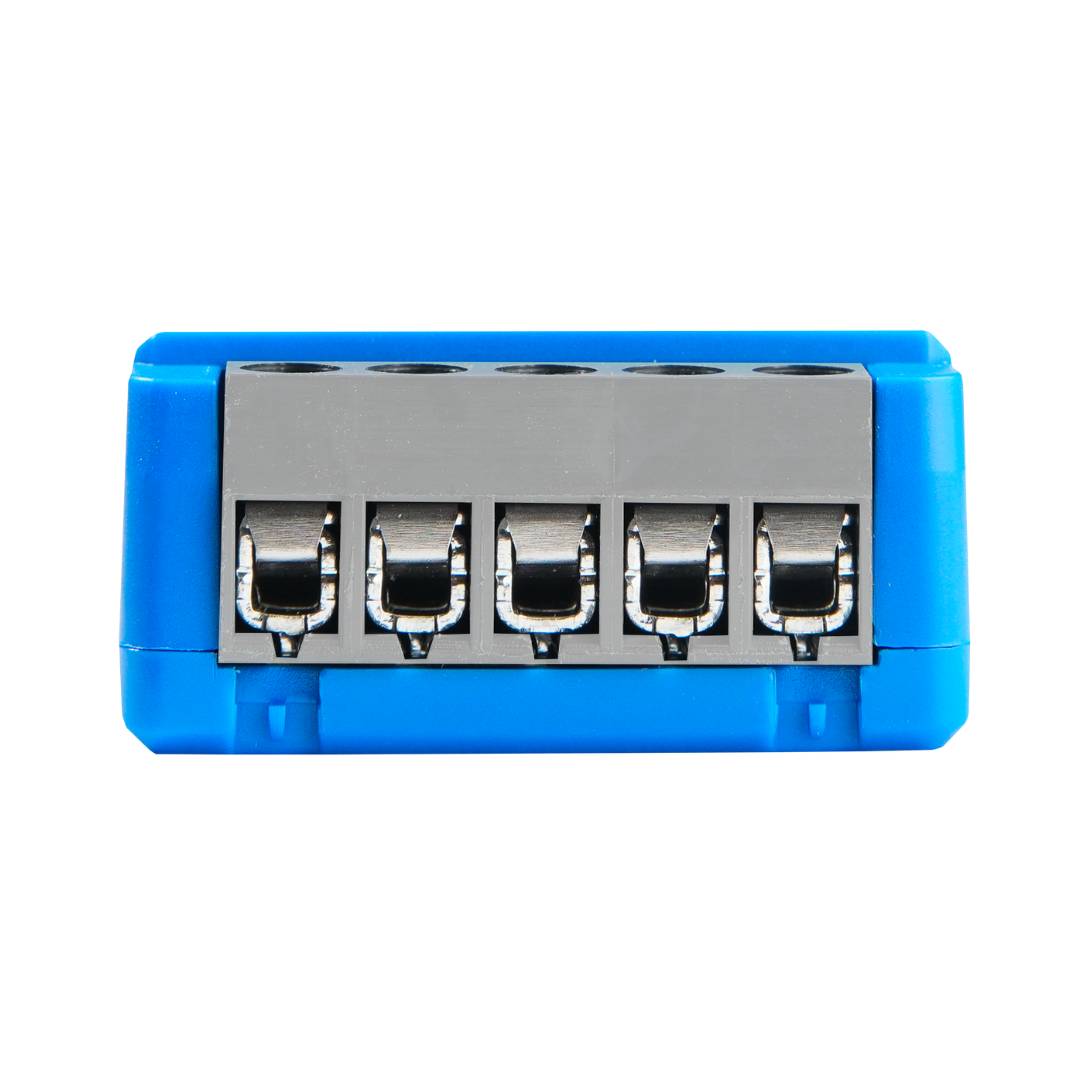

Conductor cross section0.5 to 4 mm² / 20 to 11 AWG
Conductor stripped length6 to 7 mm / 0.24 to 0.28 in
Screw terminals max. torque0.4 Nm / 3.5 lbin
Shell material / colorPlastic / Blue
ENVIRONMENTAL
Ambient working temperature-20°C to 40°C / -5°F to 105°F
Humidity30% to 70% RH
Max. altitude2000 m / 6562 ft
ELECTRICAL
Power supply110-240 V AC
Power consumption< 1.2 W
Output1 potential-free (dry, NO) relay
Max. switching current8 A / 240 V AC; 5 A / 30 V DC
Max. output power2000 W / 240 V AC; 150 W / 30 V DC
Inputs1 switch/button input
Internal temperature sensorYes (overheating protection)
RADIO
Wi-Fi802.11 b/g/n/ax (Wi-Fi 6), 2.4 GHz; up to 30 m / 100 ft indoors, 50 m / 160 ft outdoors
Bluetooth5.0 (LE); up to 10 m / 33 ft indoors, 30 m / 100 ft outdoors
Zigbee3.0 (802.15.4), repeater; up to 100 m / 328 ft indoors, 300 m / 984 ft outdoors
MatterYes (over Wi-Fi, default profile)
MICROCONTROLLER & FIRMWARE
CPU / FlashESP-Shelly-C68F / 8 MB
Schedules20
Webhooks (URL actions)20 with 5 URLs per hook
Scripting / MQTT / KNXnet/IPYes / Yes / Yes

Collapsible content

Warranty

New Products

  • USA Pro Market Manufacturer Warranty: Lifetime manufacturer warranty (only if installed by a professional within USA) when purchased at Digital Bay Tech.

  • Retail Standard Manufacturer Warranty (included in purchase price): 2, 3 or 5 years manufacturer warranty covers only the hardware (corpus, mechanics, and display, if any) and does not cover consumables (battery) and accessories insofar as these are subject to exhaustion (decrease of their useful life) depending on the intensity of their use. Device malfunctions are only covered when device is used as described conditions within user manual (max loads, proper installation, etc.). Please check refund policy for further details.
  • Gen 1: 2 years.
  • Plus, Gen3, Gen4, Wave: 3 years.
  • Pro Line: 5 years.

Special Notes

  • Do It Yourself: Devices are technically user-installable in many locales, nevertheless consulting a licensed electrician to install shelly components is recommended; in addition to being licensed to work with electrical devices, they are also familiar with local building codes and regulations to keep your safety.
  • Manufacturer's Safety note: Each Shelly device generates heat under load. Do not combine two or more Shelly devices stacked on top of or beside each other in a confined space. There must be a minimum distance of 0.4 inch / 1 cm between them to allow for airflow.
