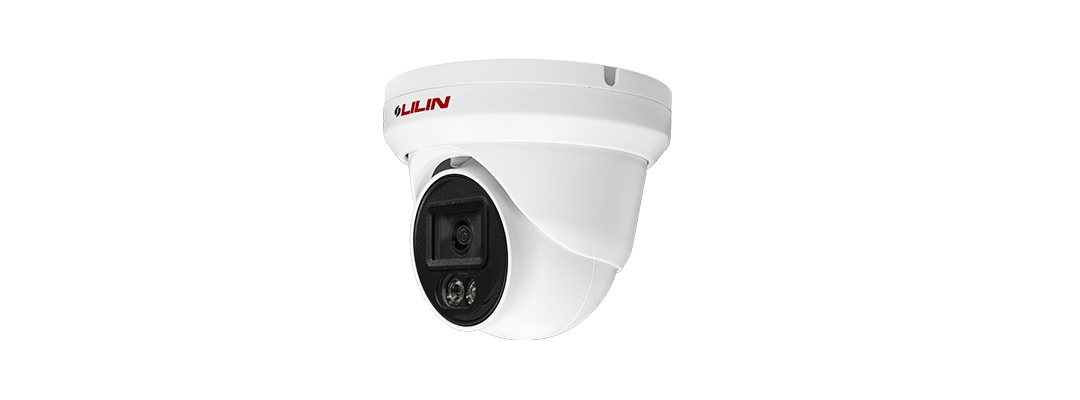

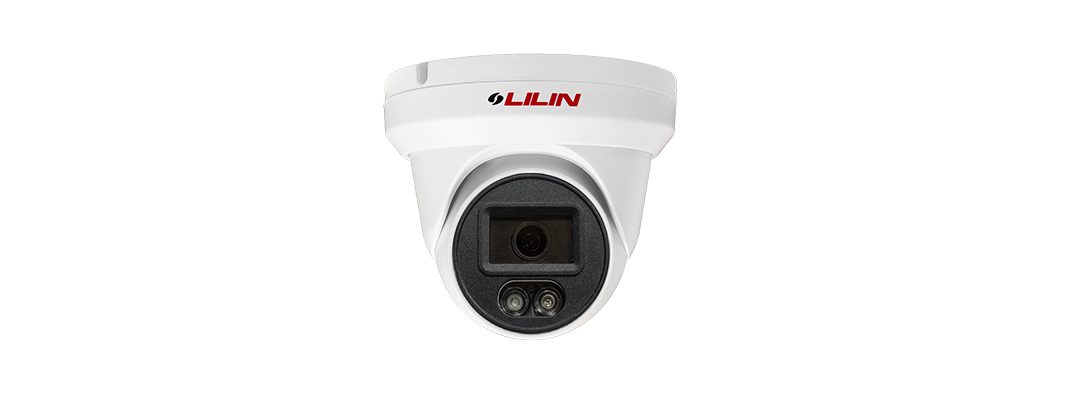

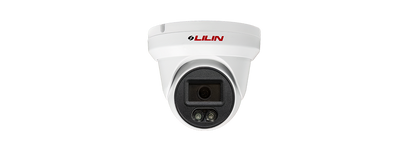

Cámara de torreta IP fija con infrarrojos, día y noche, Lilin V1R4452E2, 5 MP
Cámara de torreta IP fija con infrarrojos, día y noche, Lilin V1R4452E2, 5 MP
SKU:V1R4452E2
Ask for Dealer Price
Shipping to Canada? Write us for a customs estimation.
(*)See terms & conditions
Need more quantity? We have it! Contact us and we will get it for you
No se pudo cargar la disponibilidad de retiro
Este sistema de protección virtual de seguridad para exteriores puede admitir cuatro conjuntos de zonas de alerta o líneas de alerta direccionales simultáneamente. Cada zona o línea de alerta se puede configurar para activar diferentes eventos. Con el reconocimiento de IA, puede filtrar objetos no válidos y reducir significativamente las falsas alarmas.
Reconocimiento nocturno
Resolución mínima de identificación 200 x 200 Pix
La zona/línea de alerta puede reconocer independientemente diferentes objetos y desencadenar diferentes eventos después de la identificación.
El reconocimiento de características humanas incluye estar de pie, correr, ponerse en cuclillas, caminar, gatear, trepar, usar sombreros, sostener paraguas, etc.
El reconocimiento de vehículos incluye bicicletas, automóviles, motocicletas, autobuses, trenes, camiones, excavadoras, etc.
La configuración de la zona fría puede eliminar anomalías ambientales en el reconocimiento de objetos y mejorar la precisión.
Es posible configurar el tipo de objeto seleccionado, el tamaño del objeto y el nivel de confianza del objeto para filtrar los objetos reconocidos.
LILIN V1R4452E2 - Características principales
- Sensor de imagen CMOS de 5 megapíxeles
- Compresión de video de alto rendimiento de 5 MP H.265/HEVC y H.264/AVC
- Transmisión simultánea de transmisiones codificadas H.265 y H.264
- Reducción de ruido 3D
- Función WDR 2D
- Función HDR hasta 120dB
- IVS
- Detección de movimiento, manipulación, pérdida de red, contador global, entrada virtual y metadatos
- Evento SMART
- LED IR de alta eficiencia, distancia radiante hasta 30 m
- Día y noche (corte IR extraíble)
- Compatible con perfiles ONVIF S, T, G y M
- Resistente a la lluvia y al polvo IP67
- Resistente al vandalismo aprobado IK10
What is an IP Rating (Ingress Protection)?
The IP rating or IP code classifies the degree of protection provided by an enclosure, for electrical equipment with a rated voltage not exceeding 72.5 kV. IP ratings are defined by the international standard EN 60529 (British Standard BS EN 60529:1992).
What do the two digits in an IP Rating mean?
The rating consists of the letters IP followed by two digits, the higher the number the better the protection. Sometimes a number is replaced by X, which indicates that the enclosure is not rated for that specification.
IP65 = First Digit – Solids
The first digit indicates the level of protection that the enclosure provides against the ingress of solid foreign objects, from tools or fingers that could be hazardous if they came into contact with electrical conductors or moving parts, to airborne dirt and dust that could damage circuitry.
IP65 = Second Digit – Liquids
The second digit defines the protection of the equipment inside the enclosure against various forms of moisture (drips, sprays, submersion etc).
| First Digit | Intrusion Protection | Second Digit | Moisture Protection |
| 0 | No protection. | 0 | No protection. |
| 1 | Protected against solid objects over 50mm, e.g. accidental touch by hands. | 1 | Protected against vertically falling drops of water, e.g. condensation. |
| 2 | Protected against solid objects over 12mm, e.g. fingers. | 2 | Protected against direct sprays of water up to 15 degrees from the vertical. |
| 3 | Protected against solid objects over 2.5mm, e.g. tools and wires. | 3 | Protected against sprays of water from all directions - limited ingress permitted. |
| 4 | Protected against solid objects over 1mm, e.g. wires. | 4 | Protected against water splashing against the enclosure from any direction - limited ingress permitted. |
| 5 | Protected against dust, limited ingress (no harmful deposit). | 5 | Protected against low-pressure water jets from any direction - limited ingress permitted. |
| 6 | Totally protected against dust. | 6 | Protected against strong jets of water, e.g. on ships deck, limited ingress permitted. |
| First Digit | Intrusion Protection |
|---|---|
| 0 | No protection. |
| 1 | Protected against solid objects over 50mm, e.g. accidental touch by hands. |
| 2 | Protected against solid objects over 12mm, e.g. fingers. |
| 3 | Protected against solid objects over 2.5mm, e.g. tools & wires. |
| 4 | Protected against solid objects over 1mm, e.g. wires & nails. |
| 5 | Protected against dust limited ingress, no harmful deposits. |
| 6 | Totally protected against dust. |
| Second Digit | Moisture Protection |
| 0 | No protection. |
| 1 | Protected against vertically falling drops of water, e.g. condensation. |
| 2 | Protected against direct sprays of water up to 15 degrees from the vertical. |
| 3 | Protected against direct sprays of water up to 60 degrees from the vertical. |
| 4 | Protected against water splashed from all directions, limited ingress permitted. |
| 5 | Protected against low pressure jets of water from all directions, limited ingress permitted. |
| 6 | Protected against strong jets of water, e.g. on ships deck, limited ingress permitted. |
