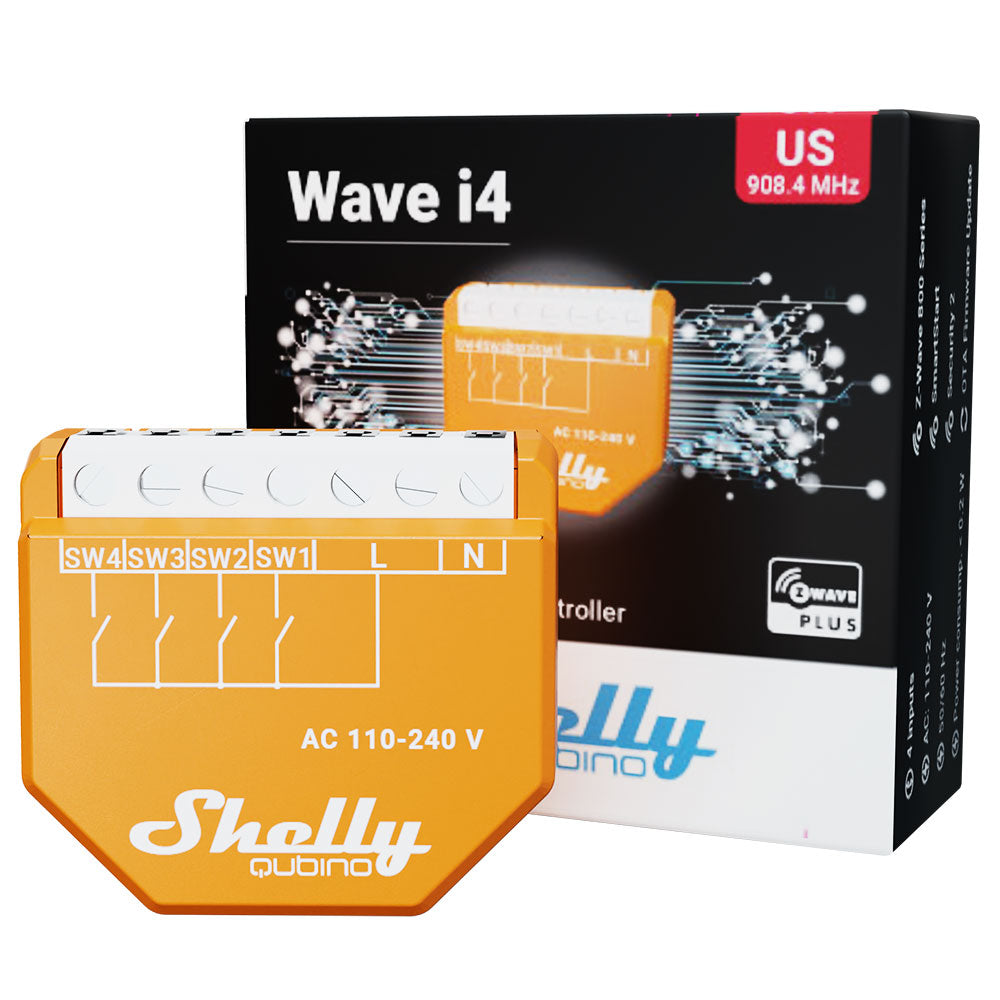

Shelly Wave works on Z-Wave
Universally compatibleYou can integrate Shelly directly with virtually every smart home hub, voice assistant, open source platform, or premium control system. |
![]() |
||||
![]() |
![]() |
||||
![]() |
![]() |
||||
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Universally compatibleYou can integrate Shelly directly with virtually every smart home hub, voice assistant, open source platform, or premium control system. |
|
![]() |
|
![]() |
|
![]() |
|
![]() |
|
![]() |
|
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Specifications
| PHYSICAL | |
|---|---|

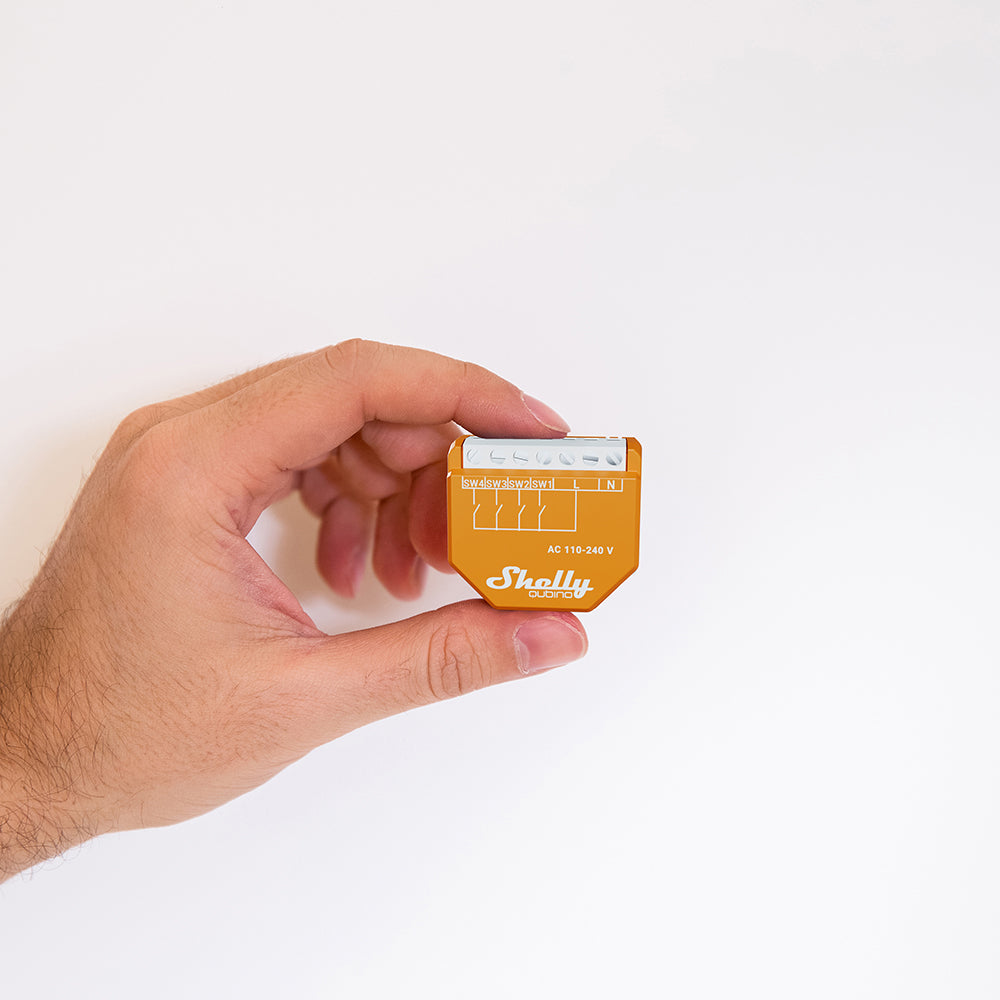

| Size (HxWxD) | 37 x 42 x 16 mm / 1.46 x 1.65 x 0.63 in |
| Weight | 17 g / 0.6 oz |
| Mounting | In-wall box |
| Shell material / color | Plastic / Orange |
| ENVIRONMENTAL | |
| Ambient working temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30% to 70% RH |
| Max. altitude | 2000 m / 6562 ft |
| ELECTRICAL | |
| Power supply | 110-240 V AC, 50/60 Hz |
| Power consumption | < 0.2 W |
| Inputs | 4 switch/push-button inputs |
| Outputs | None (scene controller) |
| Z-WAVE | |
| Chip | Z-Wave 800 Series (S800) |
| Frequency | 908.4 MHz (Z-Wave Plus, US) |
| Range | Up to 40 m / 131 ft indoors |
| Z-Wave repeater | Yes (mesh network) |
| Security | S2 Authenticated, S2 Unauthenticated, S0 |
| Inclusion | SmartStart (QR code) |
| Firmware updates | Over the air (OTA) |
