Shelly

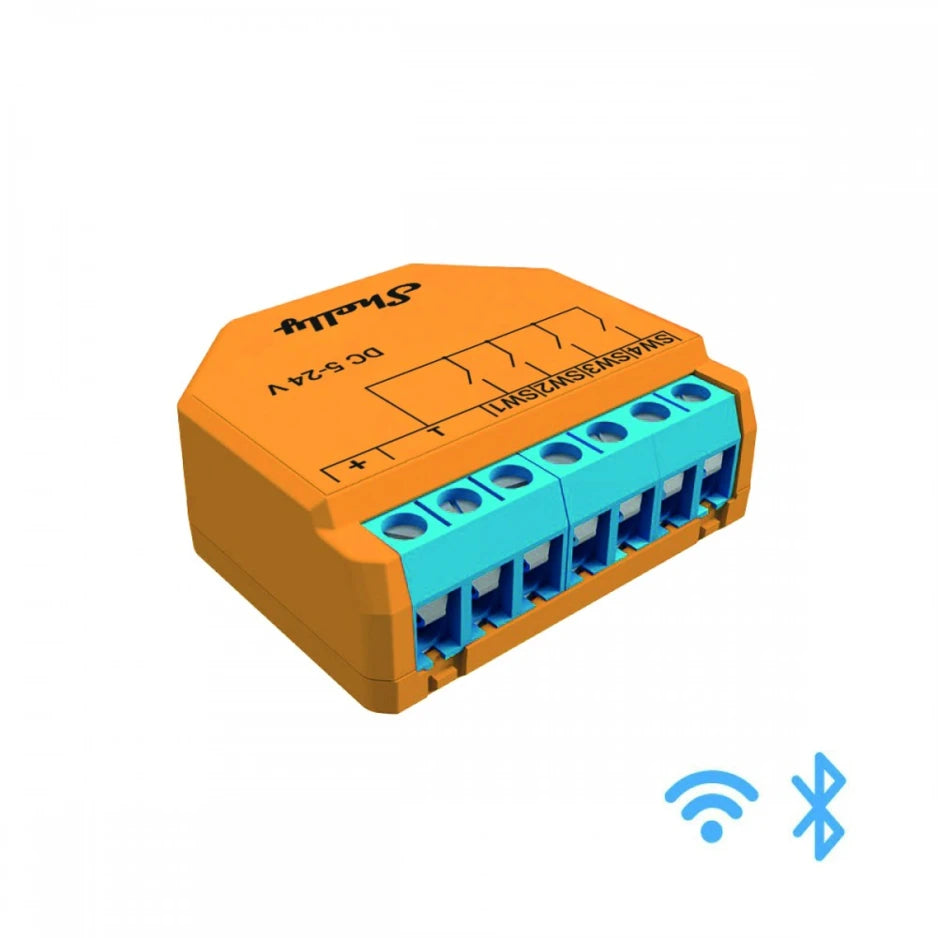

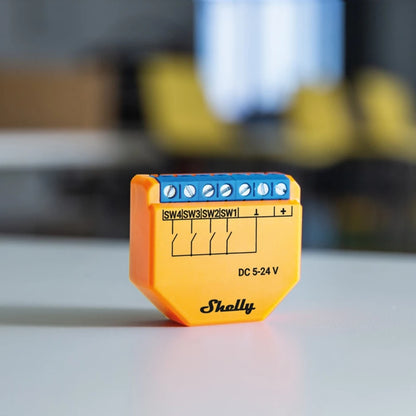

Shelly Plus I4 DC. Wi-Fi operated DC 4 digital inputs controller for Smart Scenes and enhanced actions control.
Shelly Plus I4 DC. Wi-Fi operated DC 4 digital inputs controller for Smart Scenes and enhanced actions control.
SKU:Plus i4 DC
Ask for Dealer Price
Shipping to Canada? Write us for a customs estimation.
(*)See terms & conditions
Need more quantity? We have it! Contact us and we will get it for you
Couldn't load pickup availability
Smart Scenes activation with enhanced control
Shelly Plus i4 DC allows you to manually activate or deactivate any created scene, run synchronized actions, or execute complex trigger scenarios. Enhanced with an extremely fast processor, Shelly Plus i4 will immediately command the execution and notification of various actions. You can use Shelly Plus i4 to control other connected Shelly relays, sensors, or HTTP and MQTT-controlled devices. Small enough to behind every wall switch, Shelly Plus i4 DC can show the status and control the action of four inputs.
Shelly Plus i4 DC is an input reader device (it does not contain relays)
Shelly Plus i4 DC - Specifications:
- Wi-Fi operated - Connects to your Wi-Fi network. No HUB required!
- Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
- Bluetooth - Add devices quick and easy via Bluetooth connection, using Shelly Cloud App
- Extremely fast processor – ESP32
- Multi-click - Up to 12 possible actions
- Improved API interface
- Java Scripts support for customized and complex scenarios
This is a DC version only.
No hub required, Universally compatibleShelly Products can be controlled locally, directly and without a hub through your smartphone/table with Shelly App - no hub or other equipment needed. Enable cloud feature and get remote control from anywhere. At the same time, you can integrate Shelly directly with virtually every smart home hub, voice assistant, open source platform, or premium control system. |
 |
||||
 |
 |
||||
 |
 |
||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
No hub required, Universally compatibleShelly Products can be controlled locally, directly and without a hub through your smartphone/table with Shelly App - no hub or other equipment needed. Enable cloud feature and get remote control from anywhere. At the same time, you can integrate Shelly directly with virtually every smart home hub, voice assistant, open source platform, or premium control system. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| POWER | |
|---|---|
| Power supply AC | No |
| Power supply DC | 5-24 VDC |
| Channels | 4 Channel Input |
| SPECIAL FUNCTIONS | |
| Device temperature protection | Yes |
| Overload protection | No |
| Multi-click support | Up to 12 possible actions |
| FEATURES | |
| HTTP/HTTPS webhooks | Yes |
| Custom scripts (mJs) | Yes |
| Operational temperature | -20°C to 40°C / -4°F to 104°F |
| Device power consumption | < 1 W |
| Intelligent On/Off | Yes |
| Local and remote control | Yes |
| Sunrise/Sunset | Yes |
| Weekly Schedule | Yes |
| CONNECTIVITY | |
| Wireless | Yes |
| Wi-Fi Protocol | 802.11 b/g/n |
| Wi-Fi Radio frequency | 2412-2472 МHz |
| Wi-Fi Radio signal power | 1mW |
| Wi-Fi Range | up to 50m / 164ft outdoors and up to 30m / 98ft indoors (depending on the building materials) |
| DIMENSIONS | |
| Size | 42 x 38 x 17mm |
