No hub required, Universally compatibleShelly Products can be controlled locally, directly and without a hub through your smartphone/table with Shelly App - no hub or other equipment needed. Enable cloud feature and get remote control from anywhere. At the same time, you can integrate Shelly directly with virtually every smart home hub, voice assistant, open source platform, or premium control system. |
|||||
No hub required, Universally compatibleShelly Products can be controlled locally, directly and without a hub through your smartphone/table with Shelly App - no hub or other equipment needed. Enable cloud feature and get remote control from anywhere. At the same time, you can integrate Shelly directly with virtually every smart home hub, voice assistant, open source platform, or premium control system. |
|
Size (HxWxD): | 37x37x10 mm / 1.46x1.46x0.39 in |
---|---|
Weight: | 13 g / 0.44 oz |

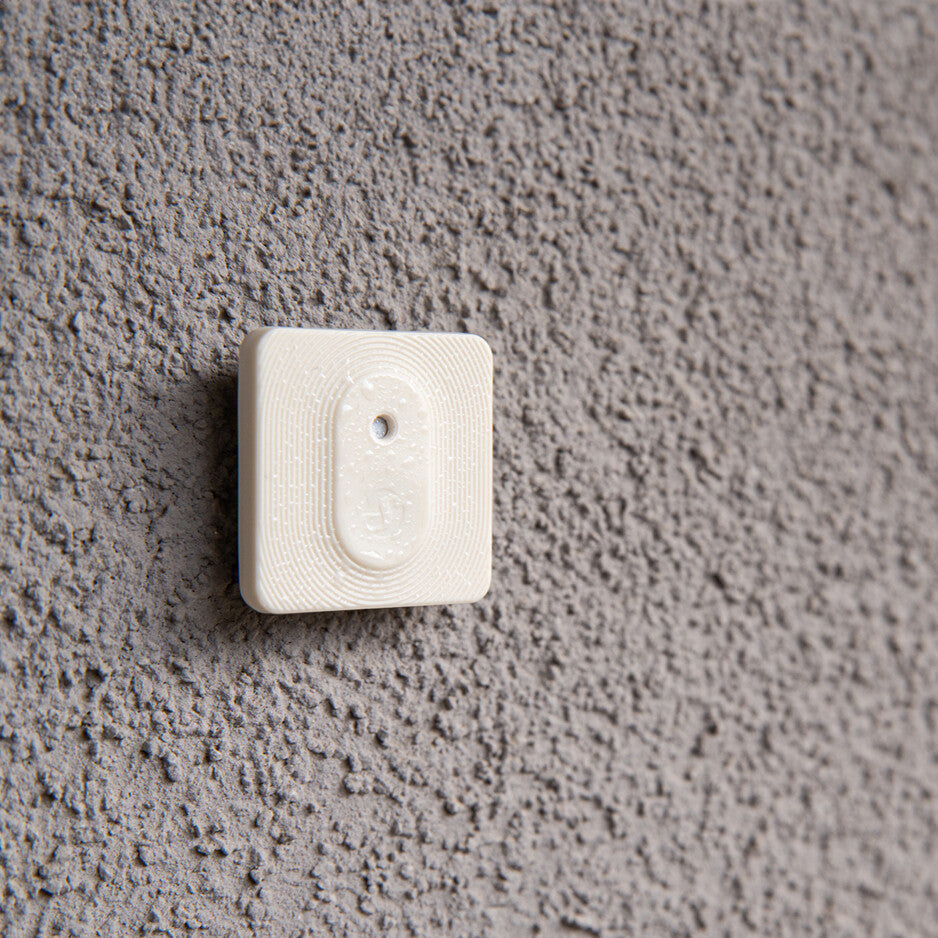

Mounting: | On a flat surface |
Shell material: | Plastic |

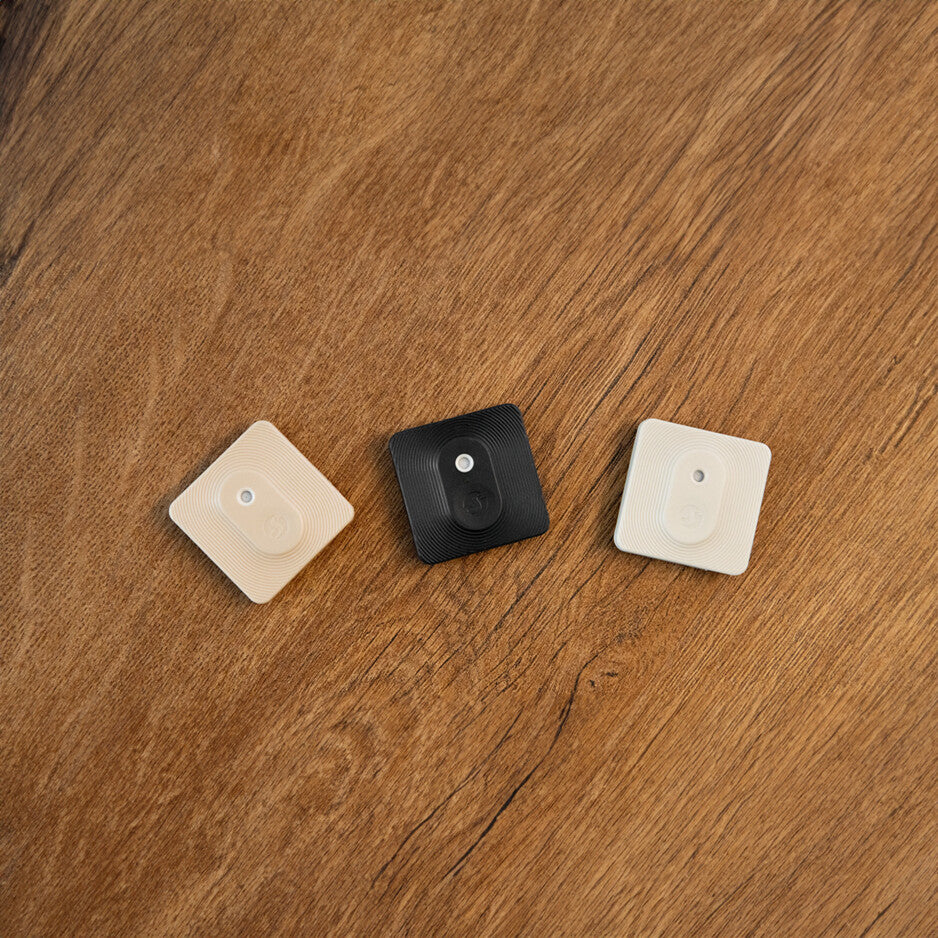

Shell color: | Black,Mocha,Ivory |
Ambient working temperature: | -20 °C to 60 °C /-5 °F to 140 °F |
Humidity: | 0% to 100% RH |

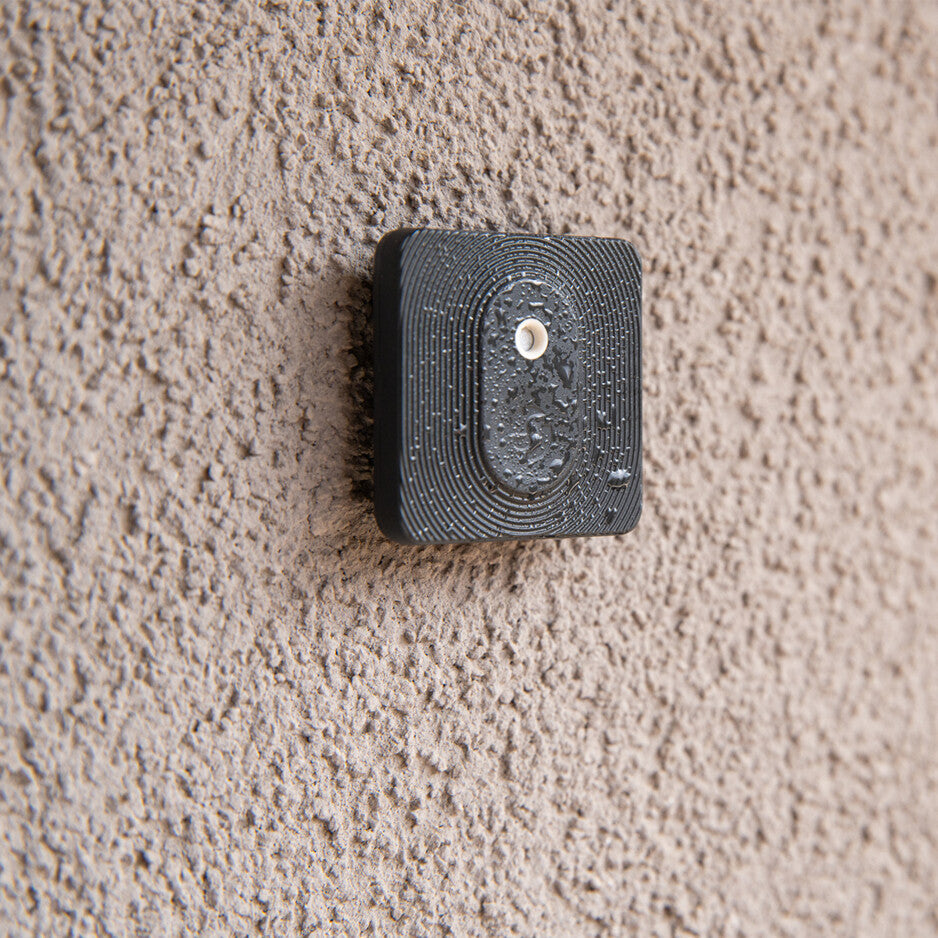

Protection class: | IP54 |
Power supply: | 1x 3 V battery (included) |
Battery type: | CR2032 |
Estimated battery life: | 3 years |
Bluetooth protocol: | 4.2 |
RF band: | 2400 - 2483.5 MHz |
Max. RF power: | < 4 dBm |
Range: | Up to 30 m / 100 ft outdoors, up to 10 m / 33 ft indoors (depending on local conditions) |
Encryption: | AES (CCM mode) |
What is an IP Rating (Ingress Protection)?
The IP rating or IP code classifies the degree of protection provided by an enclosure, for electrical equipment with a rated voltage not exceeding 72.5 kV. IP ratings are defined by the international standard EN 60529 (British Standard BS EN 60529:1992).
What do the two digits in an IP Rating mean?
The rating consists of the letters IP followed by two digits, the higher the number the better the protection. Sometimes a number is replaced by X, which indicates that the enclosure is not rated for that specification.
IP65 = First Digit – Solids
The first digit indicates the level of protection that the enclosure provides against the ingress of solid foreign objects, from tools or fingers that could be hazardous if they came into contact with electrical conductors or moving parts, to airborne dirt and dust that could damage circuitry.
IP65 = Second Digit – Liquids
The second digit defines the protection of the equipment inside the enclosure against various forms of moisture (drips, sprays, submersion etc).
First Digit | Intrusion Protection | Second Digit | Moisture Protection |
0 | No protection. | 0 | No protection. |
1 | Protected against solid objects over 50mm, e.g. accidental touch by hands. | 1 | Protected against vertically falling drops of water, e.g. condensation. |
2 | Protected against solid objects over 12mm, e.g. fingers. | 2 | Protected against direct sprays of water up to 15 degrees from the vertical. |
3 | Protected against solid objects over 2.5mm, e.g. tools and wires. | 3 | Protected against sprays of water from all directions - limited ingress permitted. |
4 | Protected against solid objects over 1mm, e.g. wires. | 4 | Protected against water splashing against the enclosure from any direction - limited ingress permitted. |
5 | Protected against dust, limited ingress (no harmful deposit). | 5 | Protected against low-pressure water jets from any direction - limited ingress permitted. |
6 | Totally protected against dust. | 6 | Protected against strong jets of water, e.g. on ships deck, limited ingress permitted. |
First Digit | Intrusion Protection |
---|---|
0 | No protection. |
1 | Protected against solid objects over 50mm, e.g. accidental touch by hands. |
2 | Protected against solid objects over 12mm, e.g. fingers. |
3 | Protected against solid objects over 2.5mm, e.g. tools & wires. |
4 | Protected against solid objects over 1mm, e.g. wires & nails. |
5 | Protected against dust limited ingress, no harmful deposits. |
6 | Totally protected against dust. |
Second Digit | Moisture Protection |
0 | No protection. |
1 | Protected against vertically falling drops of water, e.g. condensation. |
2 | Protected against direct sprays of water up to 15 degrees from the vertical. |
3 | Protected against direct sprays of water up to 60 degrees from the vertical. |
4 | Protected against water splashed from all directions, limited ingress permitted. |
5 | Protected against low pressure jets of water from all directions, limited ingress permitted. |
6 | Protected against strong jets of water, e.g. on ships deck, limited ingress permitted. |
